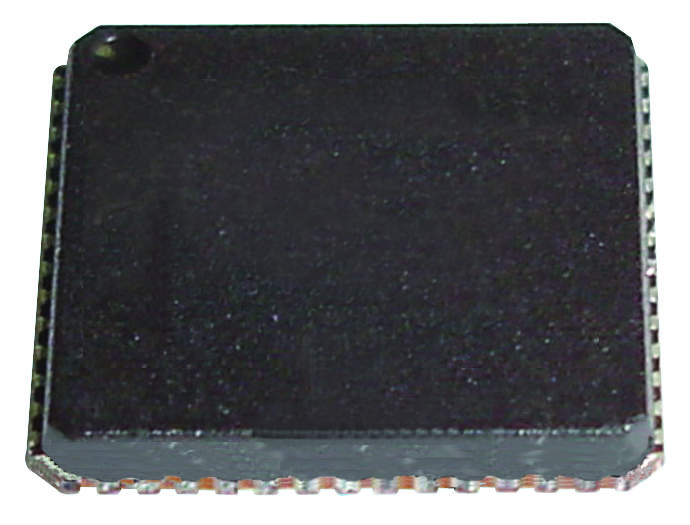

MAXIM INTEGRATED / ANALOG DEVICES MAX11049ETN High-Speed Multi-Channel ADC
The MAX11049ETN is a high-speed, multi-channel ADC featuring 16-bit resolution and simultaneous sampling for accurate data acquisition. It supports four independent inputs, offering a 0 to +5V input range with overrange protection and fault-tolerant inputs. Equipped with internal or external references and a high-speed parallel interface, it provides fast conversions of 3µs and throughput of 250ksps per channel. Suitable for testing, power monitoring, motor control, and waveform analysis, it ensures precise measurement with low drift, excellent linearity, and robust protection. Ideal for demanding analog-to-digital conversion applications requiring high speed and reliability.
MAXIM INTEGRATED / ANALOG DEVICES MAX11049ETN High-Speed Multi-Channel ADC Specifications:
- Resolution: 16-bit
- Channels: 4 independent inputs
- Input Range: 0 to +5V with overrange protection
- Sampling Rate: 250ksps per channel
- Conversion Time: 3µs
- Interface: 20MHz parallel, bidirectional
- Input Protection: +20mA overrange fault circuit
- Reference: Internal 4.096V bandgap or external 3.0V to 4.25V
- Operating Voltage: 4.75V to 5.25V analog, 2.7V to 5.25V digital
- Power Consumption: Approximately 25–39mA depending on model
- Operating Temperature Range: -40°C to +85°C
- Physical Package: 56-pin TQFN or 64-pin TQFP
- Additional Features: High-impedance inputs, internal clock, low drift, 4MHz bandwidth
Buy the Maxim Series Max11049 High-Speed 16-bit ADC: MAX11049ETN
Get the Maxim Series MAX11049ETN today for precise, high-speed analog-to-digital conversion. Designed with 16-bit resolution and 4 channels, this ADC offers simultaneous sampling at 250ksps, ideal for waveform analysis, power monitoring, and motor control. It features fault-protected inputs, internal/external references, and a high-speed parallel interface that ensures quick, reliable data transfer. Perfect for demanding applications requiring accuracy, speed, and robust protection, order now and elevate your measurement systems effortlessly.
Order your Maxim Series MAX11049ETN high-performance AD converter today and enhance your data acquisition accuracy with fast, reliable sampling.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX11049ETN?
You can click on the BUY or RFQ button to purchase MAX11049ETN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX11049ETN?
You can download the MAX11049ETN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX11049ETN?
MAXIM INTEGRATED / ANALOG DEVICES
