MAXIM INTEGRATED / ANALOG DEVICES MAX1836EUT50T Step-Down Converter
The MAX1836/MAX1837 are high-efficiency, step-down voltage converters designed for battery-powered and space-sensitive applications. Capable of operating from 4.5V to 24V input, they provide preset 3.3V or 5V outputs with adjustable output voltage from 1.25V to VIN using external resistors. With high efficiency over 90%, low quiescent currents of 12uA, and duty cycles up to 100%, these converters deliver load currents up to 125mA (MAX1836) or 250mA (MAX1837). Their small 6-pin SOT23 and 3mm x 3mm TDFN packages make them ideal for portable electronics, distributed power, and backup systems, ensuring reliable performance with minimal power loss.
MAXIM INTEGRATED / ANALOG DEVICES MAX1836EUT50T Step-Down Converter Specifications:
- Input Voltage Range: 4.5V to 24V
- Output Voltage: Preset 3.3V or 5V, adjustable from 1.25V to VIN
- Output Current: MAX1836 125mA, MAX1837 250mA
- Efficiency: > 90%
- Quiescent Current: 12uA
- Shutdown Current: 3.7A
- Duty Cycle: Up to 100%
- Switching Frequency: High-frequency operation
- Package Types: 6-Pin SOT23, 6-Pin TDFN 3mm x 3mm
- Operating Temperature Range: -40°C to +85°C
- Maximum Power Dissipation: 8.7mW/°C (SOT23), 24.4mW/°C (TDFN)
- Thermal Shutdown: Yes, 160°C hysteresis
- Feedback Voltage: 1.25V (adjustable through external resistors)

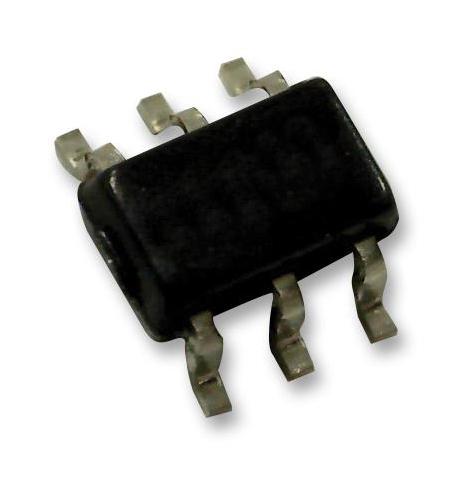

Buy the Buy Maxim Integrated MAX1836EUT50T Part Number MAX1836EUT50T Online
Order the Maxim MAX1836EUT50T online today to benefit from its high-efficiency step-down performance, low power consumption, and compact 6-pin packages. Perfect for portable, industrial, and backup power applications, it delivers preset 5V output with adjustable voltage capability from 1.25V to VIN, supporting load currents up to 125mA with efficiency exceeding 90%. Its low quiescent current minimizes power wastage, ensuring long battery life and reliable operation even in space-limited designs, making it an ideal choice for engineers seeking high-quality power conversion solutions.
Get Maxim MAX1836EUT50T today—built for precision, high efficiency, and long-lasting durability in space-constrained power supplies.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX1836EUT50T?
You can click on the BUY or RFQ button to purchase MAX1836EUT50T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX1836EUT50T?
You can download the MAX1836EUT50T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX1836EUT50T?
MAXIM INTEGRATED / ANALOG DEVICES
