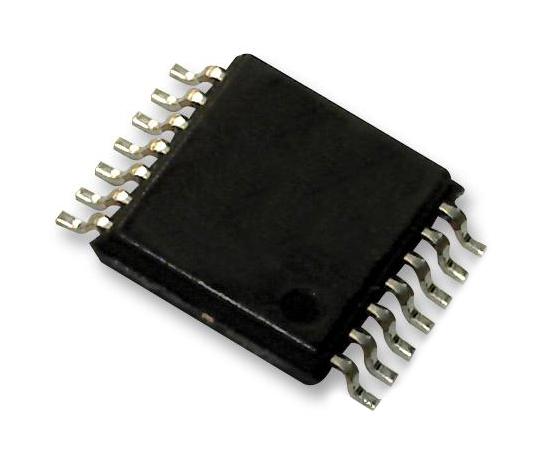

MAXIM INTEGRATED / ANALOG DEVICES MAX44267AUD Precision Amplifier
The MAX44267 is a high-precision, low-noise, dual operational amplifier designed for industrial and sensor applications. It features true-zero output, a wide input common-mode range from +13.5V to -12V, and an integrated charge pump that generates a negative voltage rail from a single +4.5V to +15V supply. This amplifier offers low offset voltage of 50µV max, low drift of 0.4µV/°C, and minimal 1/f noise of 200nVp.p from 0.1Hz to 10Hz. Its architecture eliminates the need for a negative power supply, reducing system size and cost, while providing wide bandwidth, high accuracy, and EMI filtering.
MAXIM INTEGRATED / ANALOG DEVICES MAX44267AUD Precision Amplifier Specifications:
- Supply Voltage Range: +4.5V to +15V
- Input Common-Mode Range: +13.5V to -12V
- Offset Voltage: 50µV (max)
- Offset Voltage Drift: 0.4µV/°C (max)
- Input Bias Current: 0.3nA at +25°C
- Input Resistance: 50 MΩ
- Noise Density: 200nVp.p from 0.1Hz to 10Hz
- Gain-Bandwidth Product: 5MHz
- Slew Rate: 3V/µs
- Output Swing: High voltagwith both channels driven (+13.8V to -12.7V)
- Total Quiescent Current: 4mA (max)
- Charge Pump Frequency: 500kHz
- Package Type: 14-pin TSSOP
- Operating Temperature Range: -40°C to +125°C
- Integrated EMI filter for high-frequency noise reduction
- Maximum output sink current: 15mA per channel
Buy the Maxim MAX44267 – Reliable Precision Amplifier for Industrial Applications
Order the Maxim MAX44267 amplifier online today and benefit from high-accuracy, low-noise operation ideal for sensor interfaces, industrial automation, and signal conditioning. Its unique zero-drift architecture and integrated charge pump eliminate the need for negative supplies, saving space and cost. Designed with a wide input range, EMI filtering, and excellent temperature stability, this amplifier ensures reliable performance in demanding environments. Purchase now to enhance your measurement systems with precision and efficiency.
Buy Maxim MAX44267 now and experience unmatched precision, low noise, and integrated charge pump for sensor and measurement solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX44267AUD?
You can click on the BUY or RFQ button to purchase MAX44267AUD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX44267AUD?
You can download the MAX44267AUD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX44267AUD?
MAXIM INTEGRATED / ANALOG DEVICES
