MAXIM INTEGRATED / ANALOG DEVICES MX7545JN 12-bit CMOS Multiplying DAC
The MX7545JN+ is a CMOS 12-bit buffered multiplying digital-to-analog converter (DAC) in a 20-pin DIP package. Featuring internal data latches, it accepts a 12-bit digital input loaded via control signals. When CS and WR are low, data is latched, making the DAC output respond to input changes. It operates on +5V or +15V supplies, with digital input compatibility for TTL, CMOS, and high-voltage CMOS. Built with laser-trimmed, low tempco resistors, it provides linearity errors within ±1/4LSB, suitable for motion control, test equipment, calibrations, and programmable power supplies. It offers ±2LSB relative accuracy, operates from 0°C to 70°C, and withstands ESD over 6000V.
MAXIM INTEGRATED / ANALOG DEVICES MX7545JN 12-bit CMOS Multiplying DAC Specifications:
- Resolution: 12 Bits
- Input Voltage Compatibility: TTL, CMOS at +5V; High-voltage CMOS at +15V
- Supply Voltage: +5V or +15V
- Linearity Error: typically within ±1/4LSB
- Relative Accuracy: ±2LSB
- ESD Protection: Over 6000V
- Temperature Range: 0°C to 70°C
- Power Dissipation: not specified
- Package: 20-pin DIP
- Control signals: CS, WR for data latching
- Built with laser-trimmed thin-film resistors
- Applications include motion control, test equipment, microprocessor calibration, programmable gain, power supplies

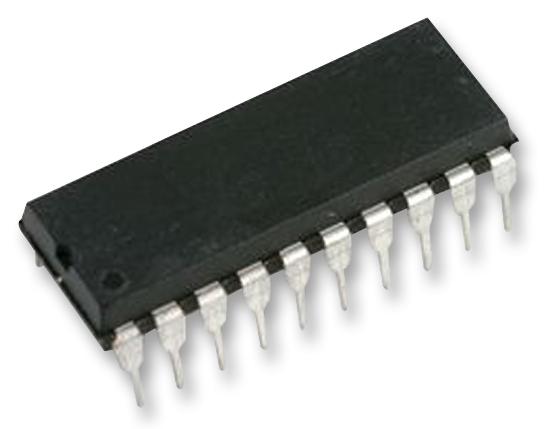

Buy the Maxim Series MX7545 Digital-to-Analog Converter: MX7545JN
Purchase the Maxim MX7545JN+ digital-to-analog converter online today and experience high accuracy and reliability for motion control, test automation, and calibration solutions. This 12-bit CMOS DAC ensures linearity with ±1/4LSB typical errors, operates from a single supply of +5V or +15V, and features internal data latches for seamless digital control. With over 6000V ESD protection, it offers excellent robustness for industrial environments. Its compact 20-pin DIP package makes integration straightforward for various electronic and automation applications. Invest in precision, durability, and performance—order now to enhance your system capabilities.
Get Maxim MX7545JN+ today—built for precision and long-lasting durability in motion control and calibration systems.
