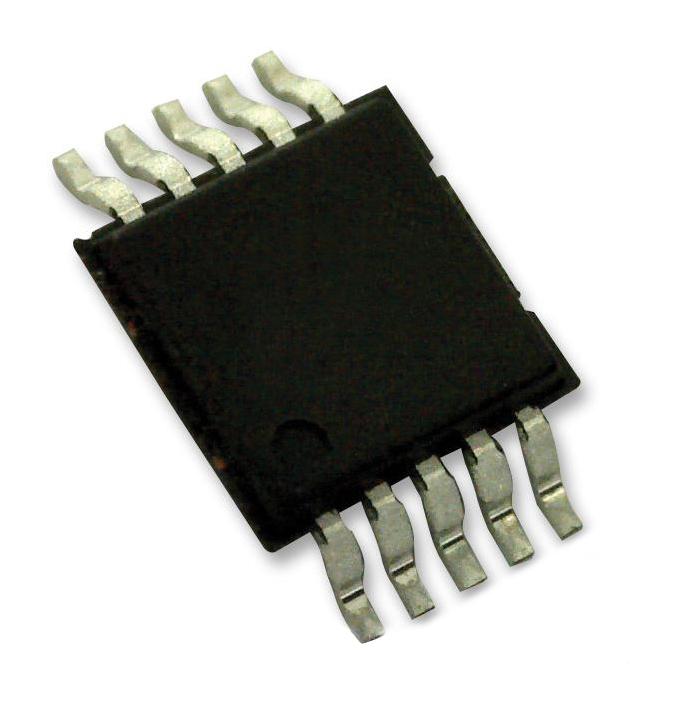

MAXIM INTEGRATED / ANALOG DEVICES MAX1856EUB PWM Power Supply Controller
The MAX1856 is a versatile PWM SLIC power supply controller designed for generating high-voltage negative supplies used in telecommunication and broadband equipment. It features wide input voltage range from 3V to 28V, synchronization capability, and operates efficiently through its current-mode control and Idle Mode for light loads. Integrated soft-start, adjustable frequency between 100kHz and 500kHz, and a low-noise linear regulator enhance performance. Suitable for VoIP, cable modems, routers, and industrial power supplies, it simplifies high-voltage supply design with off-the-shelf transformers and minimal external components.
MAXIM INTEGRATED / ANALOG DEVICES MAX1856EUB PWM Power Supply Controller Specifications:
- Input Voltage Range: 3V to 28V
- Output Voltage: Adjustable, high-voltage negative supplies
- Switching Frequency: 100kHz to 500kHz, set by resistor Rosc
- Synchronization: External clock synchronization available
- Soft-start: Internal soft-start circuit
- Control Scheme: Current-mode PWM with Idle Mode
- Operation Temperature Range: -40°C to +85°C
- Package Type: 10-pin uMAX
- Maximum Power Dissipation: 444mW at 70°C junction temperature
- Maximum Junction Temperature: +150°C
- Storage Temperature Range: -65°C to +150°C
- Lead Soldering Temperature: 300°C for 10 seconds
- Efficiency: Typically 80% depending on component selection
- External components: Transformer, Schottky diode, inductors, resistors, capacitors
Buy the Maxim Series PWM SLIC Power Supply: MAX1856EUB
Order the Maxim Series MAX1856EUB online today for a highly efficient, versatile PWM control solution designed for generating negative high-voltage supplies in telecommunication, broadband, and industrial systems. This advanced controller features wide input voltage range from 3V to 28V, synchronization with external clocks, internal soft-start, and Idle Mode for optimal efficiency at light loads. Its compact 10-pin package, robust design, and minimal external components make it ideal for power supplies, VoIP, cable modems, and industrial equipment, ensuring reliability and ease of integration.
Buy Maxim Series MAX1856EUB now and experience unmatched efficiency and flexible power supply generation for high-voltage telecom and industrial applications.
