MAXIM INTEGRATED / ANALOG DEVICES MAX192BCPP 8-Channel Serial ADC
The MAX192BCPP+ is a low-power, 8-channel, 10-bit serial analog-to-digital converter housed in a 20-pin DIP package. It integrates an 8-channel multiplexer, high-bandwidth track/hold, and serial interface for fast data acquisition with minimal power consumption. The analog inputs can be configured for single-ended or differential (unipolar/bipolar) operation via software. Features include a 4-wire serial interface compatible with SPI, QSPI, and Microwire, with a serial strobe for DSP connection. It offers successive approximation conversions using internal or external clock, with an internal 4.096V reference, gain adjustment, and features to reduce quantization errors. Operating from 4.75V to 5.25V and 0°C to 70°C, it consumes 1.5mA during operation and 2μA in power-down mode. Sampling occurs at 133kHz with ±1LSB accuracy. Ideal for signal processing, portable devices, and consumer electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX192BCPP 8-Channel Serial ADC Specifications:
- Resolution: 10 Bits
- Channels: 8 Multiplexer, configurable for single-ended or differential inputs
- Input Voltage Range: 0 V to VREF (4.096V), with internal gain adjustment
- Serial Interface: 4-wire compatible with SPI, QSPI, Microwire with serial strobe output
- Sampling Rate: 133 kHz
- Power Consumption: ~1.5 mA during operation, 2 μA in power-down
- Reference Voltage: Internal 4.096V with minimal drift, external reference input supported
- Operating Voltage: 4.75V to 5.25V
- Temperature Range: 0°C to 70°C
- Input Configuration: Single-ended or differential (unipolar/bipolar)
- Gain Adjustment: Via internal reference buffer amplifier
- Accuracy: ±1LSB relative accuracy
- Package: 20-pin DIP
- Additional features: Successive approximation, low power, fast data acquisition

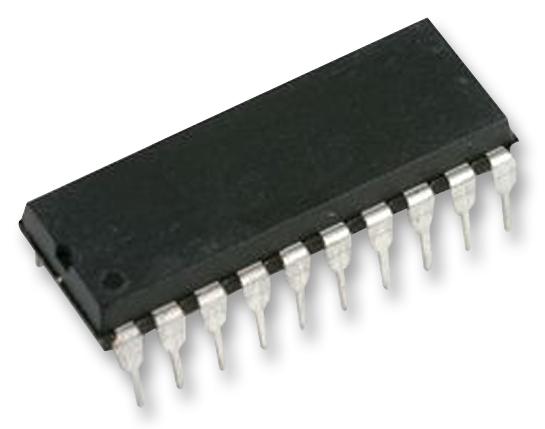

Buy the Maxim MAX192 U–2013 Reliable Signal Conversion for Industrial Applications
Order the Maxim MAX192 online today and enhance your projects with a high-speed, low-power 10-bit ADC. Its 8 configurable channels, internal reference, and fast sampling rate of 133kHz make it perfect for signal processing, portable instrumentation, and consumer electronics. With its serial interface compatible with SPI, QSPI, and Microwire, integration into your system is straightforward. Enjoy reliable operation over 4.75V to 5.25V in a durable 20-pin DIP package. Don't miss out—purchase now to elevate your data acquisition capabilities.
Buy Maxim MAX192 now and experience unmatched reliability and performance in high-speed data acquisition for industrial and consumer electronics.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX192BCPP?
You can click on the BUY or RFQ button to purchase MAX192BCPP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX192BCPP?
You can download the MAX192BCPP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX192BCPP?
MAXIM INTEGRATED / ANALOG DEVICES
