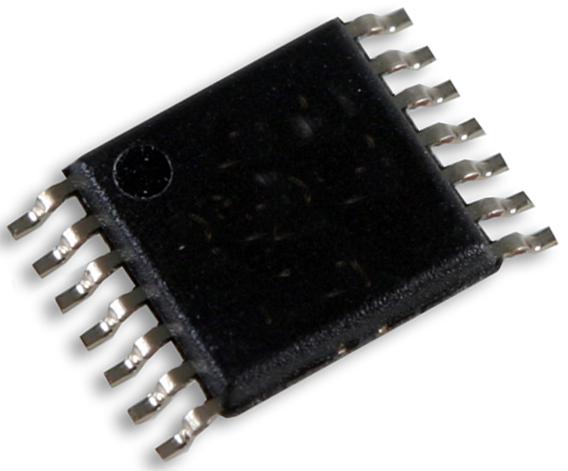

MAXIM INTEGRATED / ANALOG DEVICES MAX5815BAUD Quad-Channel 12-Bit DAC
The MAX5815BAUD+ is a compact, quad-channel, 12-bit buffered digital-to-analog converter (DAC) with an internal reference and I2C interface, housed in a 14-pin TSSOP package. It features output buffers and an internal reference that can be selected among 2.048V, 2.500V, or 4.096V. An external reference input supports rail-to-rail operation and offers a 100 kΩ load. The I2C-compatible 2-wire interface operates at up to 400 kHz clock rate. The DAC outputs are buffered, with low supply current under 250 μA per channel and low offset error of ±0.5 mV (typical). On power-up, outputs reset to zero for safety in applications like valve or transducer control. The device includes an internal reference initially powered down for use with an external reference. It supports a supply voltage from 2.7V to 5.5V, with a temperature range from -40°C to 125°C. Features include four high-accuracy 12-bit DAC channels, monotonic operation, independent mode settings, quick settling time of 4.5 μs, and direct drive of 2 kΩ loads. It has separate power supply inputs, power-on-reset to zero, and asynchronous control options via LDAC and CLR signals. Three software-selectable power-down output impedances are available: 1 kΩ, 100 kΩ, or high impedance. The internal reference has a temperature coefficient of 10 ppm/°C (typical). Suitable for signal processing, industrial, and portable device applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX5815BAUD Quad-Channel 12-Bit DAC Specifications:
- Resolution: 12 Bits
- Channels: 4
- Output Buffer: Internal Buffer
- Reference Voltages: 2.048V, 2.500V, 4.096V (selectable), supports external reference
- Input Voltage Range: 2.7V to 5.5V supply, external reference source as specified
- Offset Error: ±0.5 mV (typical)
- Settling Time: 4.5 μs
- Output Drive: Up to 2 kΩ load directly
- Supply Current: <250 μA per channel
- Operating Temperature: -40°C to 125°C
- Package: 14-pin TSSOP
- Power-on-reset: Outputs reset to zero at power-up
- Impedance in Power-down: 1 kΩ, 100 kΩ, or high impedance (software selectable)
- Interface: I2C compatible, up to 400 kHz
- Reference Temperature Coefficient: 10 ppm/°C (typical)
Buy the Maxim Series MAX5815 Digital-to-Analog Converter: 12-Bit Quad Channel
Purchase your Maxim Series MAX5815BAUD+ online today and give your electronic projects the dependable precision they need. This high-accuracy, low-power four-channel DAC offers internal reference options, rapid settling time of 4.5 μs, and supports external references. Designed for industrial, portable, and signal processing applications, it features a safe power-on reset to zero, configurable output impedances, and a compact 14-pin TSSOP package. Order now and integrate this advanced DAC for superior performance and seamless connectivity in your next design.
Order your Maxim Series MAX5815BAUD+ today and enhance your signal processing with a reliable, precise 12-bit quad DAC with internal reference and I²C interface.
