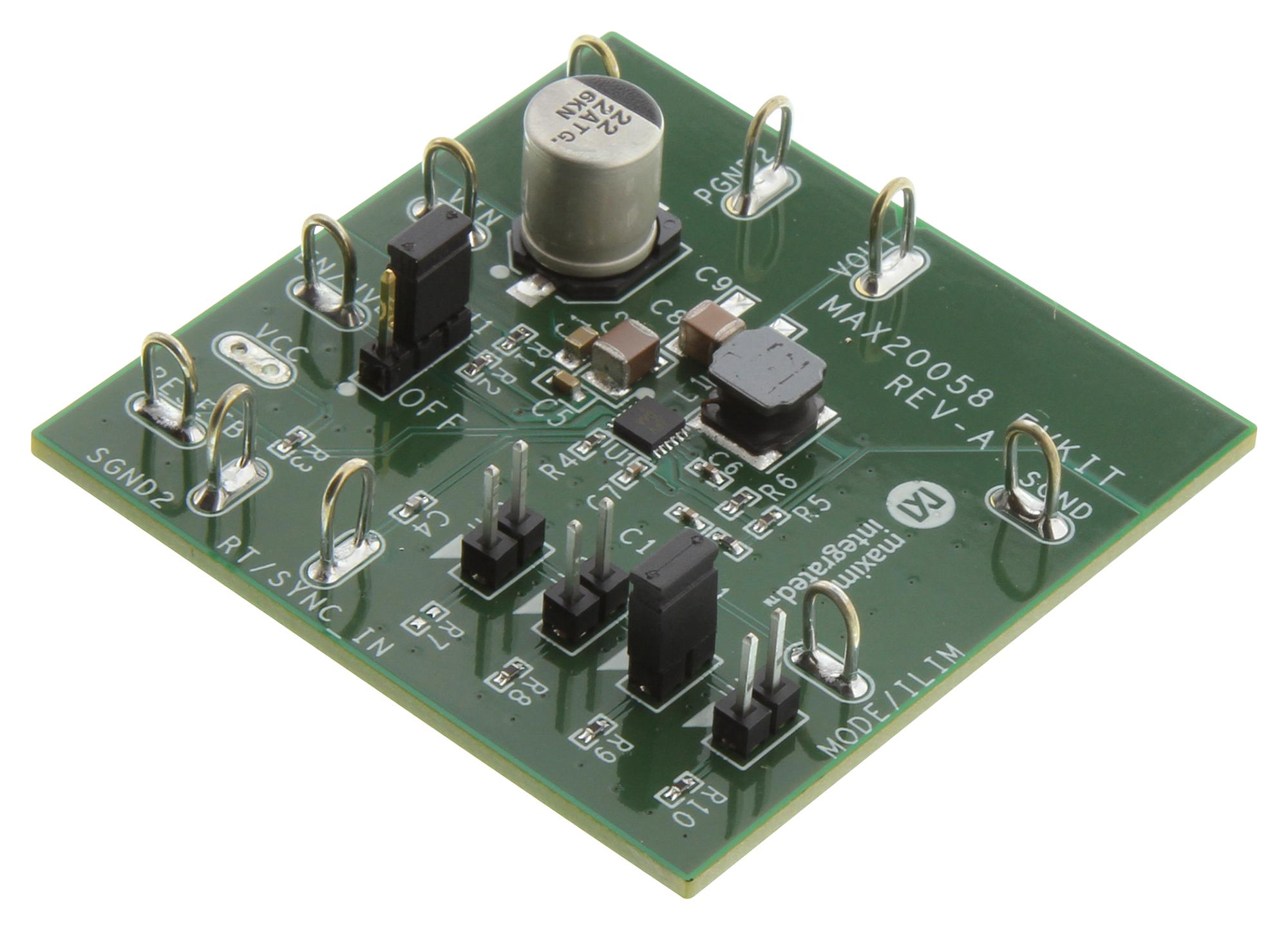

MAXIM INTEGRATED / ANALOG DEVICES MAX20058EVKIT DC-DC Converter Kit
Evaluation kit for the MAX20058 high-efficiency, high-voltage, synchronous step-down DC-DC converter in a TDFN package. It operates from 6.5V to 60V with a nominal input of 24V. The kit supports a 5V output at a switching frequency of 400kHz, providing up to 1A of output current with an adjustable peak current limit. It includes jumpers for quick adjustment of peak current limit and mode selection, an auxiliary bootstrap LDO to enhance efficiency, and an adjustable soft-start time via an external capacitor. The design features optimized layout and components for rapid implementation and testing.
MAXIM INTEGRATED / ANALOG DEVICES MAX20058EVKIT DC-DC Converter Kit Specifications:
- Input Voltage Range: 6.5V to 60V
- Output Voltage: 5V
- Output Current: Up to 1A
- Switching Frequency: 400kHz
- Peak Current Limit: Adjustable via jumpers
- Efficiency Enhancement: Auxiliary bootstrap LDO
- Soft-Start Time: Adjustable with external capacitor
- Package Type: TDFN
- Operating Temperature Range: -55°C to +125°C
- Layout: Optimized for quick implementation
- Includes jumpers for mode and current setting
- External synchronization via RT/SYNC pin
Buy the Maxim Series MAX20058 DC-DC Converter: MAX20058EVKIT
Purchase the MAX20058 evaluation kit online to quickly evaluate a high-efficiency, high-voltage synchronous step-down converter. Designed for easy testing, it features adjustable peak current, soft-start, and synchronization options. With an input range of 6.5V to 60V and a 5V output at 400kHz, this kit supports up to 1A load current, making it ideal for power supply design, prototyping, and testing in industrial, automotive, or consumer electronics applications. Fast, reliable, and easy to configure.
Get Maxim Series MAX20058EVKIT today—built for high efficiency, adjustable currents, and quick design setup.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20058EVKIT?
You can click on the BUY or RFQ button to purchase MAX20058EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20058EVKIT?
You can download the MAX20058EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20058EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
