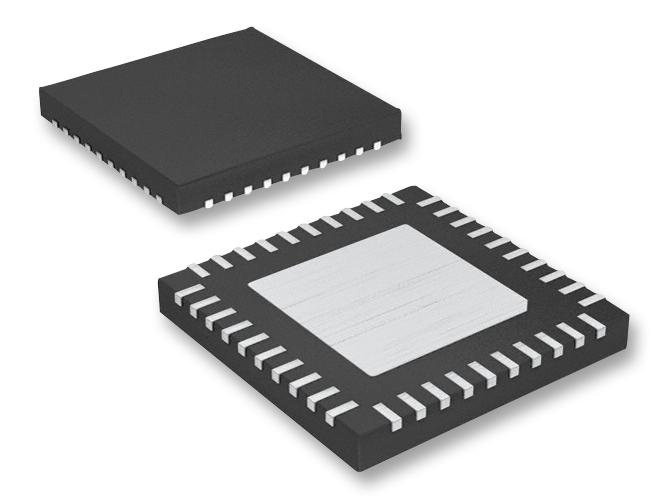

MAXIM INTEGRATED / ANALOG DEVICES MAX20069BGTLAVY Automotive TFT Power Supply
The MAX20069B is a highly integrated automotive TFT power supply and LED backlight driver IC designed for automotive TFT-LCD displays. It features a buck-boost converter, boost converter, gate-driver supplies, and a SEPIC converter, capable of powering up to four LED strings at 150mA each. It operates from a 2.8V to 5.5V input and includes comprehensive fault protection, PWM dimming, phase shifting, and diagnostic features, all packaged in a compact 40-pin TQFN with an exposed pad, suitable for automotive dashboards and head-up displays.
MAXIM INTEGRATED / ANALOG DEVICES MAX20069BGTLAVY Automotive TFT Power Supply Specifications:
- Input Voltage Range: 2.8V to 5.5V
- LED Current per Channel: 20mA to 150mA
- Number of LED Strings: Up to 4
- Operating Temperature: -40°C to +105°C
- Package: 40-pin TQFN with exposed pad
- High-Frequency Converters: 440kHz or 2.2MHz
- Positive Source-Driver Voltage: up to +15V
- Negative Source-Driver Voltage: down to -7V
- Gate-Driver Supply: up to +28V and -21.5V, 3mA max
- Fault Protection: Overcurrent, thermal shutdown, open/short LED detection
- PWM Dimming: Minimum pulse width 500ns, phase-shifting enabled
- Diagnostics: I2C control, fault detection via FLTB pin
- Inductors: Selected based on current, saturation rating > 1.7A
- Capacitors: Low ESR ceramic recommended for stability and ripple reduction
- Efficiency: High, with adaptive voltage control and load detection
- Compliance: Automotive-grade quality, RoHS compliant
