MAXIM INTEGRATED / ANALOG DEVICES MAX201CWE+ Datasheet & Stock

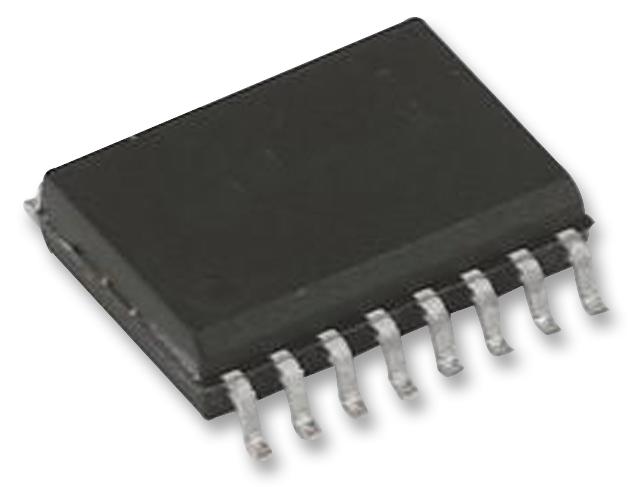

The MAX201CWE+ is a +5V, RS232 transceiver with two 0.1μF external capacitors in 16 pin WSOIC package. It is a RS232 and V.28 transceiver. The driver maintains the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120Kbps when loaded in accordance with the EIA/TIA-232E specification. The MAX201 includes only V+ to Vcharge pump and it is intended for applications that have VCC = +5V supply and V+ supply in +9V to +13.2V range.




Supply voltage range from 4.5V to 5.5V

Operating temperature range from 0°C to 70°C

Saves board space

VCC power supply current of 0.4mA

Two RS232 drivers and two RS232 receivers

Transition region slew rate of 4V/μs

Battery-Powered Equipment; Handheld Equipment; Portable Diagnostics Equipment





Applications


Communications & Networking,

Portable Devices,

Medical
