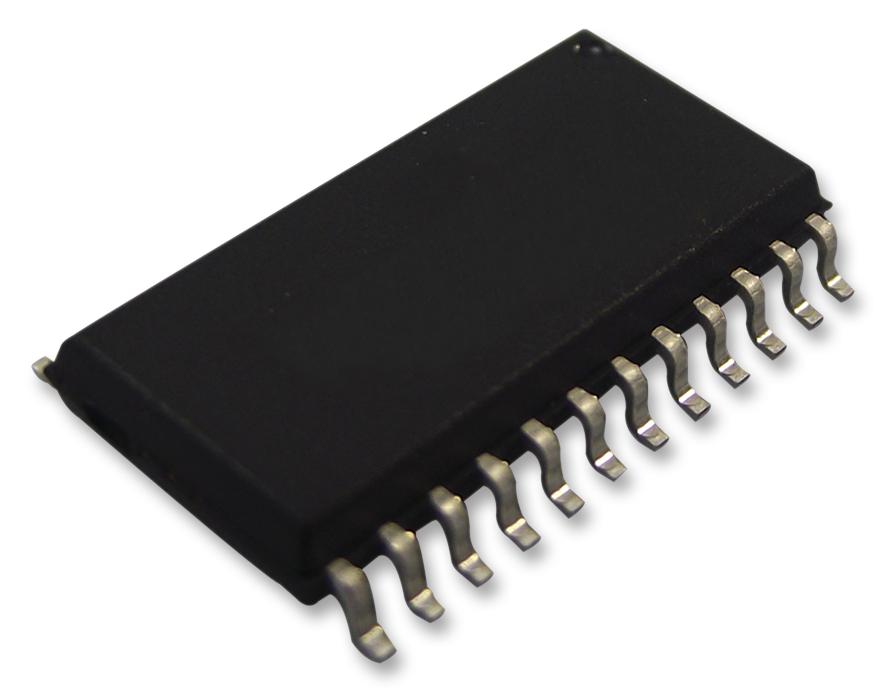

MAXIM INTEGRATED / ANALOG DEVICES MAX529CWG Octal DAC
The MAX529 is a monolithic octal 8-bit digital-to-analog converter (DAC) featuring 8 output buffers with programmable modes: unbuffered, full-buffered, and half-buffered. It operates from a single +5V supply or split supplies up to 20V, with low power shutdown mode that retains DAC data. The device includes serial control logic and reference inputs for precise voltage output control, making it suitable for digital calibration, gain adjustment, and microcontroller-based applications requiring multiple analog outputs with flexible buffering options. Its stable drive capability supports various load conditions, ensuring accuracy and reliability in industrial and control systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX529CWG Octal DAC Specifications:
- Resolution: 8 bits
- Buffer Output: Unbuffered, full-buffered, half-buffered modes
- Output Voltage Range: From Vss to VDD - 3V (unbuffered, MAX528), or based on references
- Reference Inputs: REFH and REFL, independent and low-impedance
- Supply Voltage: Single +5V or split supplies up to 20V
- Power Consumption: Less than 50μA in shutdown mode; typical dynamic current below 20mA
- Serial Interface: 3-wire compatible, clock rates up to 6.25MHz (MAX528) and 4MHz (MAX529)
- Output Drive: Capable of sourcing 5mA to 15mA depending on buffering mode
- Operating Temperature: 0°C to +70°C (MAX529), -40°C to +85°C (max variants)
- Triggering: Programmable update via serial interface, with daisy-chain capability
- Protection: Handles capacitive loads and provides stable drive for industrial applications
Buy the Maxim MAX529 Reliable Analog Output Converter for Industrial Applications
Purchase the Maxim MAX529 online today—engineered for accurate voltage output control with programmable buffering modes. Perfect for digital calibration, gain adjustments, and microcontroller-driven applications. This 8-channel, 8-bit DAC operates from +5V or split supplies up to 20V, featuring low power shutdown and stable drive capability across various loads. Its serial interface simplifies integration into control systems, offering reliable performance, efficient power management, and versatility. Order now to enhance your industrial automation and precision analog solutions.
Get Maxim MAX529 today—built for precision, flexible output buffering, and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX529CWG?
You can click on the BUY or RFQ button to purchase MAX529CWG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX529CWG?
You can download the MAX529CWG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX529CWG?
MAXIM INTEGRATED / ANALOG DEVICES
