MAXIM INTEGRATED / ANALOG DEVICES MAX3042BCWE RS-485 Transmitter
The MAX3042BCWE is a quad RS-485/RS-422 transmitter operating from a single +5V supply, offering high ESD protection up to +10kV Human Body Model. It features hot-swap capability, enabling line insertion without data errors, and supports data rates up to 20Mbps for industrial networking and telecom applications. Its low operating current of 1mA makes it ideal for power-sensitive environments. Designed for industrial motor control, PLCs, and harsh environments, the MAX3042BCWE ensures reliable, high-speed data transmission with robust electrostatic discharge and transient immunity.
MAXIM INTEGRATED / ANALOG DEVICES MAX3042BCWE RS-485 Transmitter Specifications:
- Supply Voltage: +5V ±5%
- Maximum Data Rate: 20Mbps
- ESD Protection: +10kV Human Body Model
- Electrical Fast Transient/Burst Immunity: IEC 1000-4-4 Level 4
- Input Voltage: Transmitter Enable High, 2.0V minimum
- Input Current (Hot-Swap Enable): 4.2nA typical, 120nA max
- Output Differential Voltage: Typical 2.0V, Range 1.5V to 2.8V at 54Ω load
- Output Current (Short Circuit): 425mA min, 2250mA max
- Operating Temperature Range: 0°C to +70°C
- Package Types: 16 TSSOP, 16 Wide SO, 16 Narrow SO
- Power Dissipation: 20.0mW (TSSOP), 17.4mW (Narrow SO), 19.1mW (Wide SO)
- Device Count / Transistor Count: 545 / CMOS process
- Slew-Rate Limited for EMI Minimization
- Transmitter Inputs: 2 EN, 2 TIN with hot-swap circuitry
- Control Inputs: Active High EN signals
- Protection: ESD, EFT, surge, and fast transient immunity

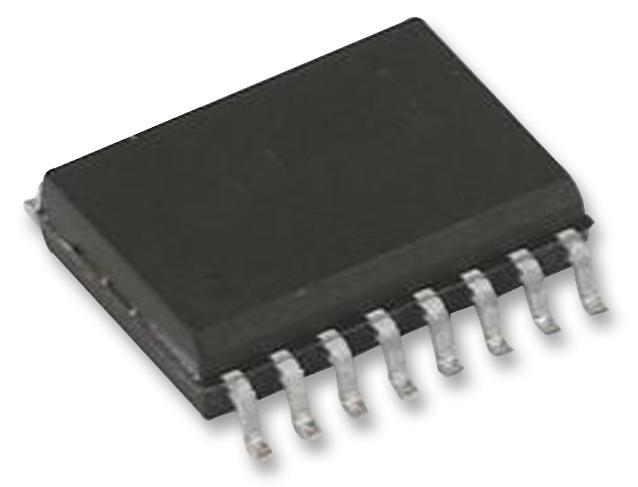

Buy the Buy MAXIM MAX3042BCWE Part Number MAX3042BCWE Online
Purchase the MAXIM MAX3042BCWE quad RS-485/RS-422 transmitter online today for industrial-grade communication solutions. This high-performance transmitter features +10kV ESD protection, supports data rates up to 20Mbps, and includes hot-swap capability, making it ideal for harsh environments such as industrial motor control, PLC systems, and telecommunications. Its low power consumption of 1mA operating current ensures efficiency in power-sensitive applications. With robust transient immunity and various package options, it guarantees reliable, high-speed data transmission, ensuring your applications operate smoothly and interference-free in demanding industrial settings.
Order your MAXIM MAX3042BCWE Quad RS-485 Transmitter today and ensure reliable data transfer in harsh industrial environments with excellent ESD protection.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX3042BCWE?
You can click on the BUY or RFQ button to purchase MAX3042BCWE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX3042BCWE?
You can download the MAX3042BCWE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX3042BCWE?
MAXIM INTEGRATED / ANALOG DEVICES
