MAXIM INTEGRATED / ANALOG DEVICES MAX20330AEVKIT ID Detection Module

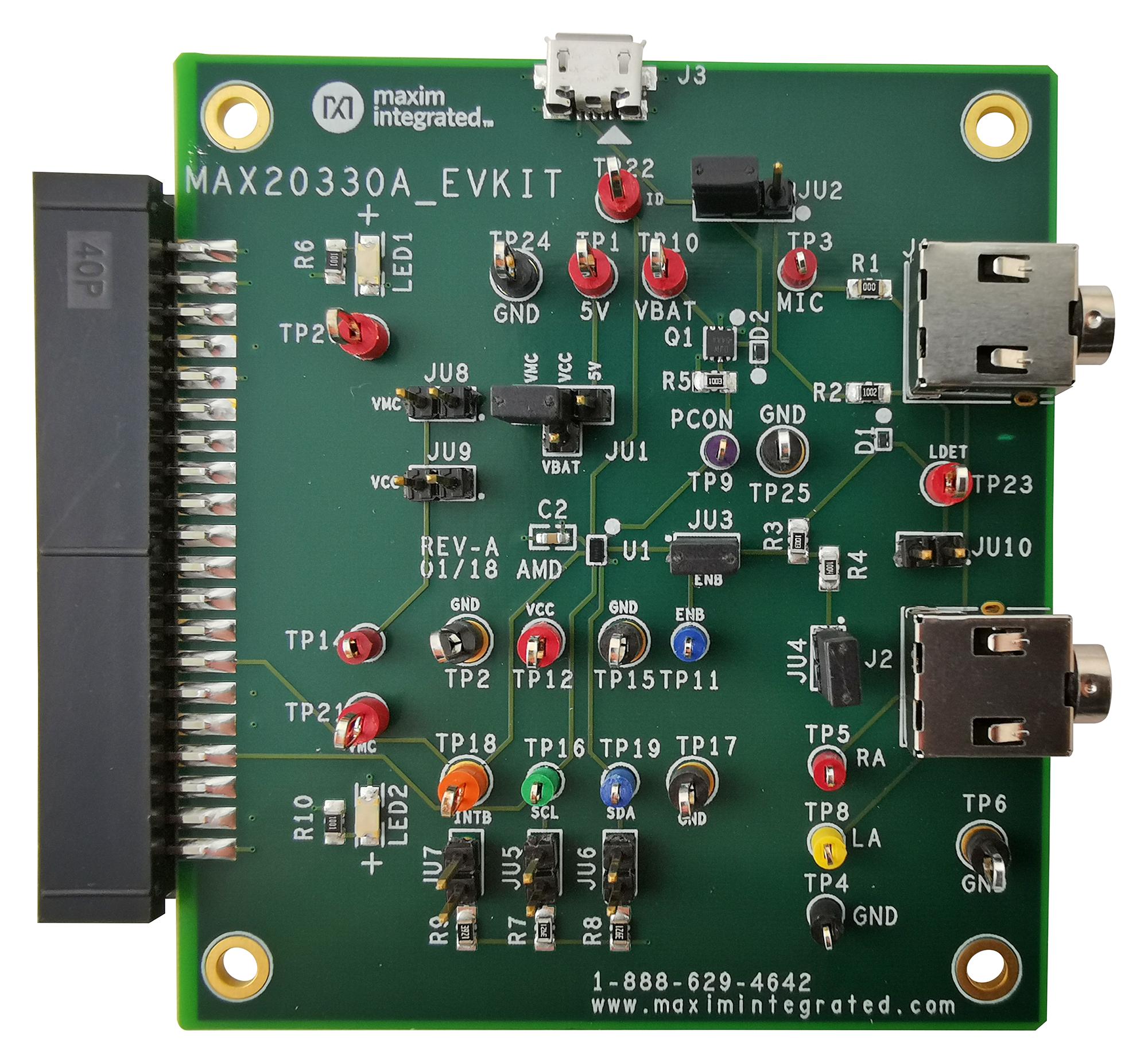

The MAX20330A evaluation kit is a fully assembled circuit board designed to showcase the MAX20330A ID detection device. It supports USB or 3.5mm Jack ID detection with factory mode detection, proven PCB layout, and easy configuration through jumpers. The kit includes the MAX20330A device in an 8-bump wafer-level package and features adjustable power supply options. It allows users to test USB or audio ID detection and requires an external I2C master for communication, making it ideal for development and testing of ID detection applications in consumer electronics and industrial setups.
MAXIM INTEGRATED / ANALOG DEVICES MAX20330AEVKIT ID Detection Module Specifications:
- Supports USB micro-B or 3.5mm jack ID detection
- Operates with external Vcc supply, configurable via jumpers
- Includes MAX20330A ID detection device in 8-bump wafer-level package
- I2C communication with slave address 1010 111
- Power supply options include 5V, VBAT, or VMC via jumpers
- Configurable for USB or audio detection with shunt jumpers
- Jumper JU10 enables device grounding for testing
- Includes test points and shunt configurations for flexible testing
- Fully assembled and tested PCB for rapid deployment
- Suitable for industrial and consumer testing environments
Buy the Maxim MAX20330A – Reliable ID Detection for Industrial Applications
Purchase the Maxim ID Detection Module online today—designed for easy integration into electronics products requiring reliable USB and audio detection. The fully assembled PCB simplifies testing and development with configurable jumpers for power and detection modes. Support for I2C communication ensures seamless integration into industrial control systems and consumer devices. Crafted with high-quality components and proven PCB layout, this module provides consistent performance, making it an essential component for engineers developing ID detection solutions in diverse electronic applications.
Get Maxim MAX20330A today—built for precise ID detection and long-lasting reliability in industrial and consumer electronics.
