MAXIM INTEGRATED / ANALOG DEVICES MAX2057ETX RF Variable-Gain Amplifier
The MAX2057 is a high-performance variable-gain amplifier designed for RF systems in the 1300MHz to 2700MHz range. It features dual on-chip attenuators providing 21dB or 42dB gain control, 15.5dB of typical gain, noise figure of 6dB, and output 1dB compression point of +23.8dBm. Optimized for applications like base stations, wireless communication, and broadband systems, it offers high linearity with an IP3 of 37dBm and operates from a single +5V supply in a compact 36-pin thin QFN package, ensuring excellent thermal and RF grounding via the exposed pad.
MAXIM INTEGRATED / ANALOG DEVICES MAX2057ETX RF Variable-Gain Amplifier Specifications:
- Operating Frequency Range: 1300MHz to 2700MHz
- Gain: Typical 15.5dB at max gain
- Gain Control Range: 21dB or 42dB with on-chip attenuators
- Noise Figure: 6dB
- Output Compression Point: +23.8dBm
- Output IP3: 37dBm
- Supply Voltage: +5V
- Power Consumption: 180-230mA typical
- Operating Temperature Range: -40°C to +85°C

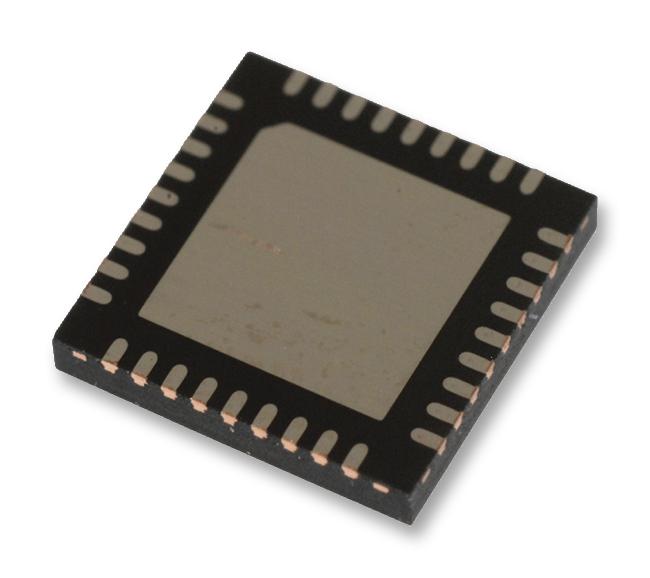

- Package: 36-pin thin QFN, 6mm x 6mm x 0.8mm
- Exposed Pad for thermal and RF grounding
- Input/Output Impedance: 50Ω
- Reverse Isolation: 37dB
- Gain Flatness: 0.5dB over 100MHz bandwidth
- Bias current adjustable with external resistors
Buy the Maxim MAX2057 – Reliable RF Amplifier for Industrial Applications
Purchase the Maxim MAX2057 RF variable-gain amplifier online today to ensure high performance in wireless base stations, broadband systems, and communication transmitters. This high-linearity, low-noise, RF device operates across 1300MHz to 2700MHz, featuring dual on-chip attenuators for precise gain control, a +5V single supply, and a compact 36-pin thin QFN package with excellent thermal management via the exposed pad. Ideal for engineers seeking reliable, efficient, and easy-to-integrate RF solutions for industrial and communication applications. Order now to enhance your RF system performance with this advanced amplifier!
Get Maxim MAX2057 today—built for high linearity, broad RF range, and low noise, perfect for demanding wireless and broadband systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX2057ETX?
You can click on the BUY or RFQ button to purchase MAX2057ETX from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX2057ETX?
You can download the MAX2057ETX datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX2057ETX?
MAXIM INTEGRATED / ANALOG DEVICES
