MAXIM INTEGRATED / ANALOG DEVICES MAX6816EUST Switch Debouncer
The MAX6816EUS+T is a CMOS single-channel switch debouncer designed for membrane keypads and switch interfacing. It provides clean digital outputs by removing bounce from mechanical switches, both when opening and closing. The device handles input voltages up to ±25V and offers ±15kV ESD protection, making it suitable for harsh industrial environments. It operates with a single supply voltage range of +2.7V to +5.5V and includes built-in undervoltage lockout circuitry to ensure proper output states upon power-up. The debouncer requires no external components, has a low supply current of 6µA, and features protection circuitry to enhance system reliability. Typical applications include industrial control, sensing and instrumentation, computer peripherals, and portable devices.
MAXIM INTEGRATED / ANALOG DEVICES MAX6816EUST Switch Debouncer Specifications:
- Supply Voltage Range: +2.7V to +5.5V
- Input Voltage Tolerance: Up to ±25V
- ESD Protection: ±15kV (HBM)
- Operating Temperature: -40°C to +125°C
- Supply Current: 6µA (typical)
- Debounce Duration: 40ms
- Protection Circuitry: Built-in overvoltage and ESD protection
- Input Resistance: 63kΩ
- Output Voltage: Near Vcc with a maximum of 0.4V drop
- Package Types: SOT143

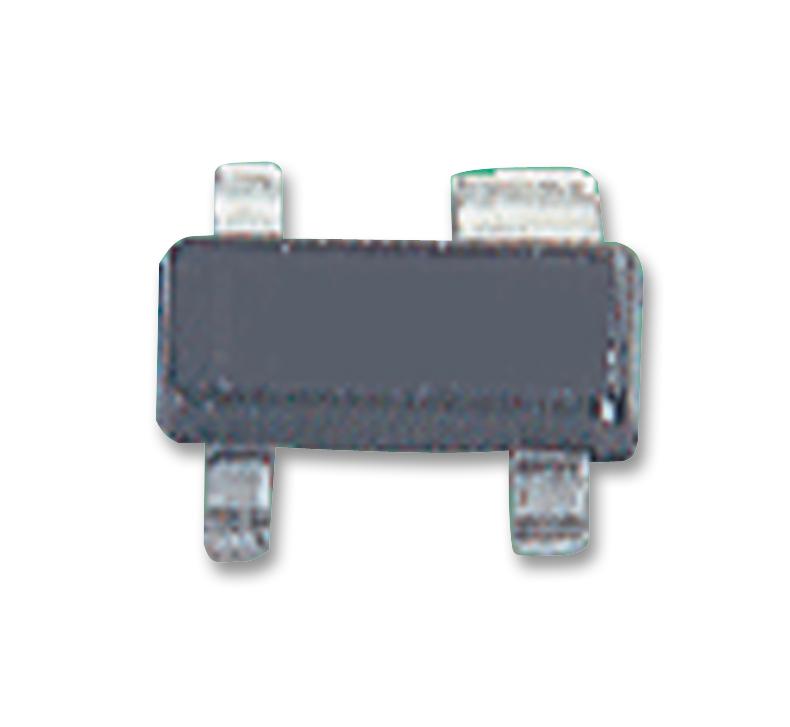

Buy the Maxim Series MAX6816 CMOS Switch Debouncer: MAX6816EUS+T
Enhance your system reliability with the Maxim Series MAX6816EUS+T switch debouncer. Designed for membrane keypads and mechanical switch interfaces, it provides clean, debounced outputs by eliminating bounce effects. The device handles input voltages up to ±25V, features built-in ESD protection of ±15kV, and operates from a single supply of +2.7V to +5.5V. With ultra-low power consumption of 6µA, it is perfect for industrial, instrumentation, and portable applications. No external components are needed, simplifying design and boosting reliability.
Order your Maxim Series MAX6816EUS+T CMOS switch debouncer today and ensure reliable switch interface in industrial and portable applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6816EUST?
You can click on the BUY or RFQ button to purchase MAX6816EUST from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6816EUST?
You can download the MAX6816EUST datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6816EUST?
MAXIM INTEGRATED / ANALOG DEVICES
