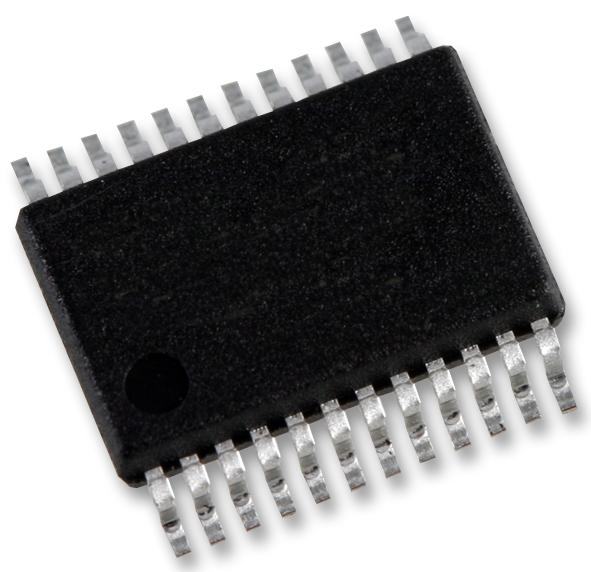

MAXIM INTEGRATED / ANALOG DEVICES MAX206EEAG RS-232 Transceiver
The MAX206EEAG is a high-performance RS-232 transceiver designed for robust industrial and communication applications. It features +15kV ESD protection, integrated charge pump circuitry for single +5V supply operation, and low power consumption with shutdown modes. The device supports data rates up to 120 kbps, ensuring reliable serial communication. Its compact 24-pin narrow plastic DIP package makes it suitable for space-constrained environments, providing durable and precise data transfer for industrial automation, instrumentation, and portable equipment.
MAXIM INTEGRATED / ANALOG DEVICES MAX206EEAG RS-232 Transceiver Specifications:
- Package: 24-pin narrow plastic DIP
- ESD Protection: +15kV Human Body Model
- Supply Voltage: +4.75V to +5.25V
- Data Rate: Up to 120 kbps
- Charge Pump: Integrated, no external capacitors needed
- Input Thresholds: CMOS/TTL compatible, high hysteresis
- Output Voltage Swing: Guaranteed to meet +5V levels
- Power Consumption: Low, with shutdown mode reducing current to nearly 1µA
- Operating Temp Range: -40°C to +85°C
- RoHS Compliant: Yes
Buy the Maxim Series MAX206 EEAG: RS-232 Transceiver with ESD Protection
Purchase the Maxim MAX206EEAG online today and enjoy reliable RS-232 communication with integrated +15kV ESD protection. Designed for industrial, portable, and automation systems, this high-performance transceiver provides support for up to 120kbps data rates with low power consumption and space-efficient packaging. Its integrated charge pump circuitry eliminates external components, simplifying your design. Whether for critical industrial equipment or space-constrained portable devices, the MAX206EEAG offers durability, robustness, and superior signal integrity—order now and ensure flawless serial communication across your systems.
Get Maxim Series MAX206EEAG today — built for robust serial communication, high ESD protection, and space-saving design in industrial applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX206EEAG?
You can click on the BUY or RFQ button to purchase MAX206EEAG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX206EEAG?
You can download the MAX206EEAG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX206EEAG?
MAXIM INTEGRATED / ANALOG DEVICES
