MAXIM INTEGRATED / ANALOG DEVICES MAX4932ETDT Audio Multiplexer
The MAX4932ETD+T from Maxim Integrated Products is a dual 3:1 audio multiplexer with click-less operation and negative signal handling. It supports signals as low as VCC - 5.5V without distortion, featuring low on-resistance of 0.38 ohms, low supply current, and operates from a voltage range of 1.8V to 5.5V. Controlled by two digital inputs CB1 and CB2 accepting up to +5.5V, it is ideal for cell phones, MP3 players, notebooks, and handheld devices. It offers excellent channel matching, low distortion (0.02%), and minimal crosstalk, ensuring clear and reliable audio switching.
MAXIM INTEGRATED / ANALOG DEVICES MAX4932ETDT Audio Multiplexer Specifications:
- On-Resistance: 0.38 ohms (typ)
- On-Resistance Match: 0.04 ohms (max)
- Supply Voltage Range: 1.8V to 5.5V
- Analog Signal Range: Voc - 5.5V to Vcc
- Total Harmonic Distortion: 0.02%
- Crosstalk: -70 dB (typ) at 20kHz
- Off Isolation: -80 dB at 20kHz
- Power Supply Rejection Ratio: 60 dB at 20kHz
- Leakage Current: 50 nA
- Control Inputs: up to +5.5V, logic thresholds: 0.5 V (low), 1.4 V (high)
- Operating Temperature Range: -40°C to +85°C

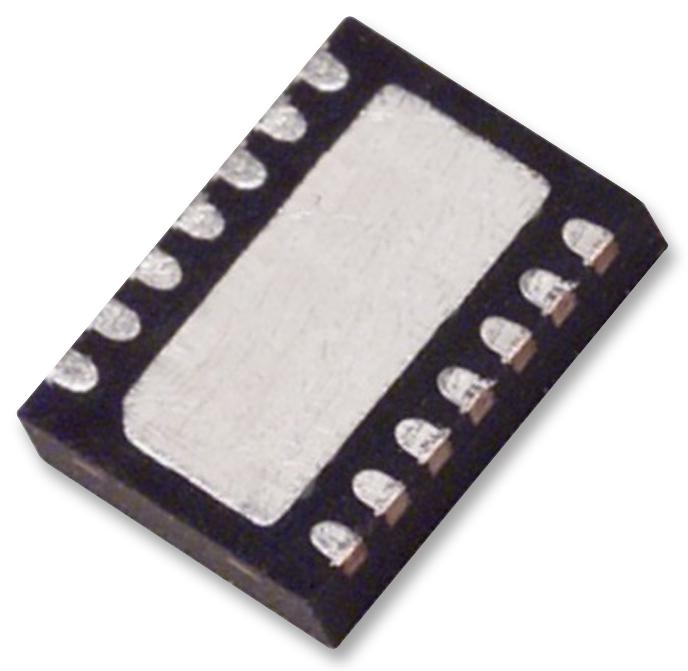

- Package: 14-pin TDFN
Buy the Buy Maxim Maxim Integrated MAX4932ETD+T Audio Multiplexer Online
Order the Maxim MAX4932ETD+T online now to experience click-less audio switching with negative signal handling. Perfect for cell phones, MP3 players, and portable electronics, this high-performance dual 3:1 multiplexer offers low on-resistance, minimal distortion, and excellent channel matching. Operating from 1.8V to 5.5V, it ensures clear sound quality, reduced crosstalk, and reliable operation across a wide temperature range. Buy online today and enhance your audio system with this advanced, compact solution designed for modern multimedia applications.
Get Maxim Maxim Integrated MAX4932ETD+T today—crafted for low distortion and reliable audio switching in portable devices.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4932ETDT?
You can click on the BUY or RFQ button to purchase MAX4932ETDT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4932ETDT?
You can download the MAX4932ETDT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4932ETDT?
MAXIM INTEGRATED / ANALOG DEVICES
