MAXIM INTEGRATED / ANALOG DEVICES MAX2121BEVKIT RF Tuner Evaluation Kit

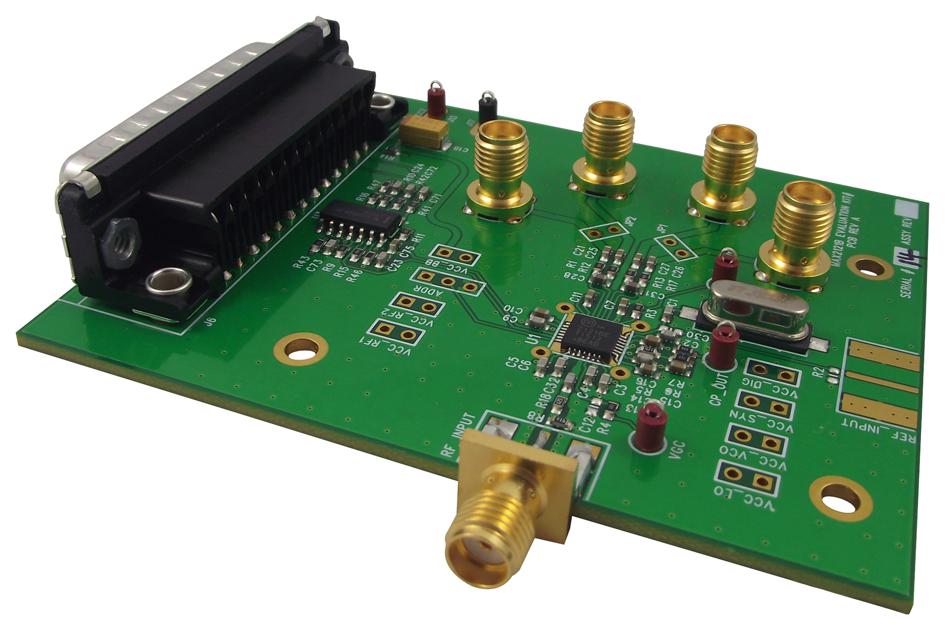

The MAX2121B evaluation kit provides a comprehensive platform for testing and evaluating the MAX2121B direct-conversion tuner IC. Fully assembled and factory tested, it includes essential connectors like 50Ω SMA RF input and BNC baseband output for quick bench testing. The kit features an onboard matching network, various ceramic and tantalum capacitors, and a PCB layout optimized for minimal signal loss. It supports integrated circuit control via Windows-compatible software, enabling users to verify tuner performance, spectrum analysis, and radio frequency measurements efficiently. Ideal for engineers developing RF applications requiring high-performance tuners and evaluation tools.
MAXIM INTEGRATED / ANALOG DEVICES MAX2121BEVKIT RF Tuner Evaluation Kit Specifications:
- Power Supply: 3.3V ±5%
- RF Input Connector: SMA, 50Ω
- Baseband Output Connector: BNC, 50Ω
- Matching Circuit: Converts 50Ω RF input to 75Ω
- Capacitors: ceramic (0603) and tantalum for filtering and tuning
- Resistors: 0603 package, various values including 0Ω, 100Ω, 49.9Ω, 1kΩ, 820Ω, 3.27MΩ, 5.1kΩ
- Crystal Oscillator: 27MHz
- Control Interface: I2C 2-wire compatible
- Dimensions: PCB layout includes top and bottom views, optimized for RF signal integrity
- Operating Frequency Range: up to approximately 2.175GHz
- Additional Components: headers, test points, shorting jumpers, and mounting hardware included
- Environmental Ratings: RoHS compliant, factory assembled, tested and calibrated for consistent performance
