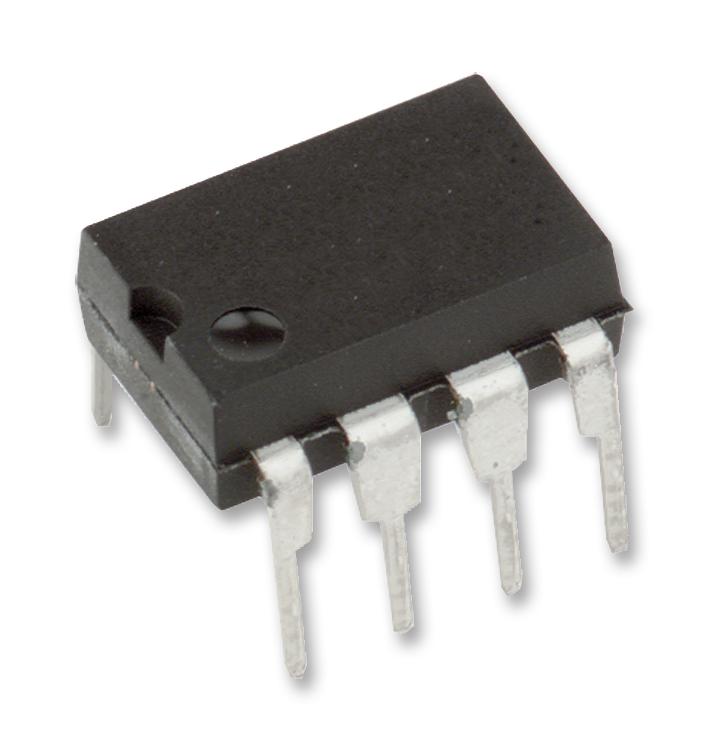

MAXIM INTEGRATED / ANALOG DEVICES MAX604CPA Low Dropout Regulator
The MAX604CPA is a low-dropout, low quiescent current linear regulator capable of delivering up to 500mA of current. It provides a preset 3.3V output or an adjustable voltage from 1.25V to 11V, making it ideal for battery-powered devices, portable instruments, and solar applications. Employing a P-channel MOSFET pass transistor, it offers low dropout voltage, thermal overload, and reverse-current protection, ensuring efficient operation and longevity in compact, versatile packages suitable for space-constrained designs with minimal power dissipation.
MAXIM INTEGRATED / ANALOG DEVICES MAX604CPA Low Dropout Regulator Specifications:
- Output Voltage: Fixed at 3.3V or adjustable from 1.25V to 11V
- Maximum Output Current: 500mA
- Input Voltage Range: 2.7V to 11.5V
- Dropout Voltage: 240mV at 200mA, 320mV at 500mA
- Quiescent Current: 15μA typical, 35μA max
- Package Type: 8-Pin SO Package
- Thermal Overload Protection: Yes
- Reverse-Current Protection: Yes
- Foldback Current Limiting: Yes
- Power Dissipation: Up to 1.8W in SO package
- Shutdown Mode: Low quiescent current, less than 2μA
- Operating Temperature Range: -40°C to +85°C
Buy the Buy Maxim Low Dropout Regulator Part Number MAX604CPA Online
Experience optimal power management with MAX604CPA, a low-dropout, adjustable linear regulator delivering up to 500mA. Its low quiescent current, thermal overload, and reverse-current protections make it ideal for battery-operated devices, portable instruments, and solar-powered applications. Available in a compact SO package, it ensures efficient, reliable operation across a wide input voltage range of 2.7V to 11.5V. Perfect for space-constrained designs, this regulator provides stable output voltage, low noise, and long-term durability to meet demanding electronic needs.
Buy MAX604CPA low-noise linear regulator now and ensure reliable power supply for your portable, battery-powered devices with high efficiency and protection features.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX604CPA?
You can click on the BUY or RFQ button to purchase MAX604CPA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX604CPA?
You can download the MAX604CPA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX604CPA?
MAXIM INTEGRATED / ANALOG DEVICES
