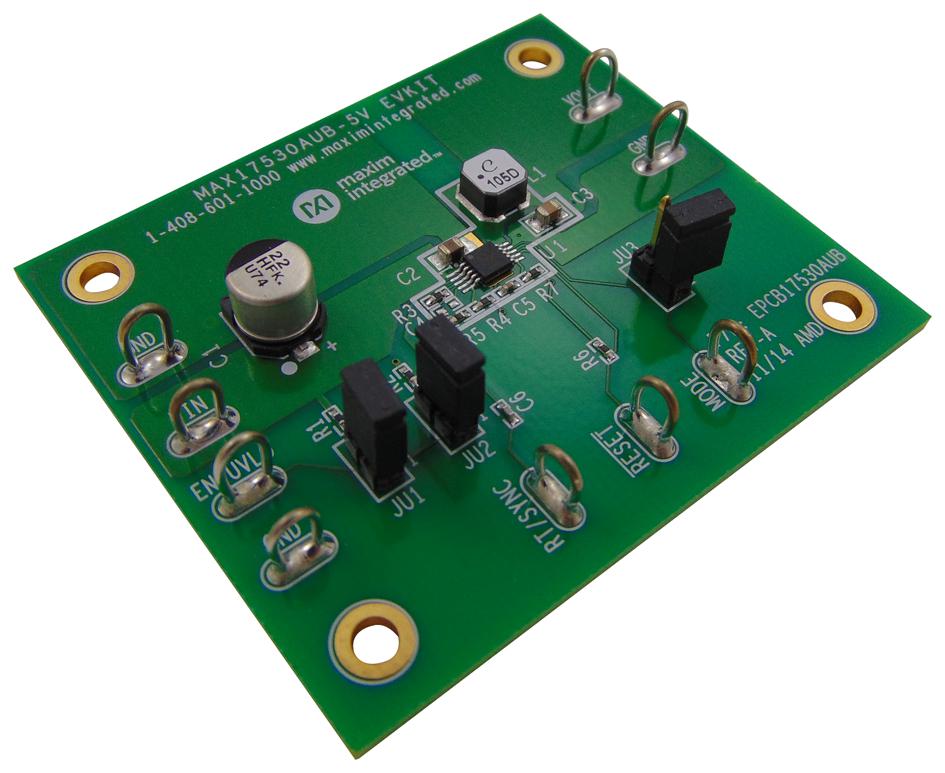

MAXIM INTEGRATED / ANALOG DEVICES MAX17530AUBEVKIT step-down converter kit
The MAX17530 5V evaluation kit is a fully assembled, tested circuit demonstrating a high-efficiency, ultra-small synchronous step-down DC-DC converter. Operating from 6V to 42V inputs, it delivers up to 25mA at 5V output with minimal quiescent current. Features include programmable switching frequency, soft-start, cycle-by-cycle peak current protection, undervoltage lockout, thermal shutdown, and flexible mode control. Ideal for compact power modules, it offers easy configuration and monitoring, making it suitable for applications requiring efficient 5V power regulation with minimal external components.
MAXIM INTEGRATED / ANALOG DEVICES MAX17530AUBEVKIT step-down converter kit Specifications:
- Input voltage range: 6V to 42V
- Output voltage: 5V at 25mA maximum load
- Supply current: 26uA no-load
- Switching frequency: Programmable, typical 220kHz
- Output current: Up to 25mA
- Soft-start time: 5ms fixed, adjustable via capacitor
- Thermal shutdown and peak current-limit protection
- Mode of operation: PFM or Forced-PWM selectable via jumper
- PCB includes enable/UVLO control, RESET monitoring, and synchronization pads
- Mounting: 10-pin UMAX package, RoHS compliant
- Components: Includes capacitors, resistors, inductor, headers for configuration
- Protection features: undervoltage lockout, thermal shutdown, cycle-by-cycle current limit
- Efficiency: High efficiency evidenced by load transient response and load regulation
- Design supports external synchronization, soft-start, and mode control
- Suitable for compact industrial, battery-powered, and embedded applications
Buy the Buy Maxim MAX17530AUB EV Kit Online
Purchase the Maxim MAX17530AUB evaluation kit online today to easily implement a compact, high-efficiency 5V switching power supply. This fully assembled device offers flexible mode control, programmable switching frequency, and protection features like thermal shutdown and current limit. Perfect for designing efficient power modules in industrial, embedded, and portable devices, the kit simplifies testing and integration, ensuring reliable performance with minimal external components. Get yours now and optimize your power conversion solutions effortlessly.
Order your Maxim MAX17530AUB evaluation kit today and enhance your power management projects with reliable, high-efficiency DC/DC conversion.
