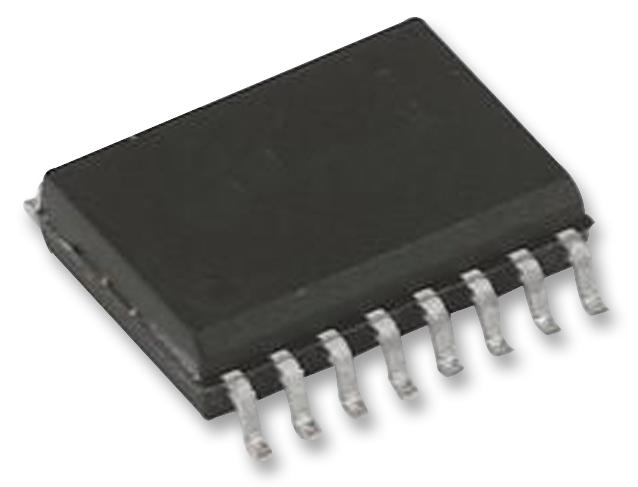

MAXIM INTEGRATED / ANALOG DEVICES MAX807NCWE Voltage Supervisor Circuit
The MAX807NEWE+ is a microprocessor supervisory circuit in a 16-pin WSOIC package, providing highly precise power supply monitoring, backup battery switchover, and watchdog functions for microprocessor-based systems. Operating with a supply current of only 70µA, it features a 2ns chip enable propagation delay and delivers up to 250mA in normal mode, 20mA in backup. It ensures system reset during brownouts, power-up and power-down, with active-high and active-low reset outputs. Additional features include two-stage power fail warning, write protection for CMOS RAM or EEPROM, manual reset input, and a backup-battery status flag indicating voltage above +2.275V. Supports voltages from 0V to 5.5V and temperature ranges from -40°C to 85°C. Compatible with MaxCap and SuperCap energy sources, the circuit offers a 4.575V voltage threshold, 200ms power-OK delay, onboard gating of chip enable signals, and a 2ns delay for chip-enable gating. Applications include power management in portable equipment, CMOS RAM and RTC backup, system monitoring, and intelligent instrument control.
MAXIM INTEGRATED / ANALOG DEVICES MAX807NCWE Voltage Supervisor Circuit Specifications:
- Supply Voltage Range: 0V to 5.5V
- Reset Threshold Voltage: 4.575V ±1.5%
- Operating Temperature Range: -40°C to 85°C
- Supply Current: 70µA typical
- Backup Current: <1µA in backup mode
- Chip Enable Propagation Delay: 2ns
- Output Current: 250mA (Vcc mode), 20mA (backup mode)
- Write Protection: CMOS RAM or EEPROM
- Manual Reset Input: Active-low, with debounce
- Power-Fail Warning Threshold: 52mV above reset threshold
- Vcc to Reset Delay: 26µs (falling Vcc)
- Power-OK Delay: 200ms
- BATT OK Voltage Threshold: +2.275V
- Backup Battery Voltage: >+2.275V indicates adequate voltage
- Voltage Monitoring: Precise voltage monitoring with MaxCap and SuperCap compatibility
- Package: 16-pin WSOIC
