MAXIM INTEGRATED / ANALOG DEVICES MAX25611BATCVY Automotive LED Driver
The MAX25611B is an automotive high-voltage LED driver designed for efficient, reliable operation in automotive exterior lighting, signal lights, and architectural illumination. It supports input voltages from 5V to 36V, with a maximum output voltage of 65V, and features high-side current sensing, spread spectrum modulation for EMI reduction, and multi-mode configurations including boost, buck-boost, SEPIC, Zeta, and Cuk. The device offers PWM and analog dimming, overvoltage, short-circuit, thermal, and fault protections, operating over -40°C to +125°C. Packaged in a 12-pin SWTQFN-EP for space-conscious designs.
MAXIM INTEGRATED / ANALOG DEVICES MAX25611BATCVY Automotive LED Driver Specifications:
- Input Voltage Range: 5V to 36V
- Maximum Output Voltage: 65V
- Operating Temperature Range: -40°C to +125°C
- Switching Frequency: 2.2MHz (MAX25611B)
- Sensing Method: High-side current sensing
- Protection Features: Overvoltage, short-circuit, thermal shutdown, fault protection

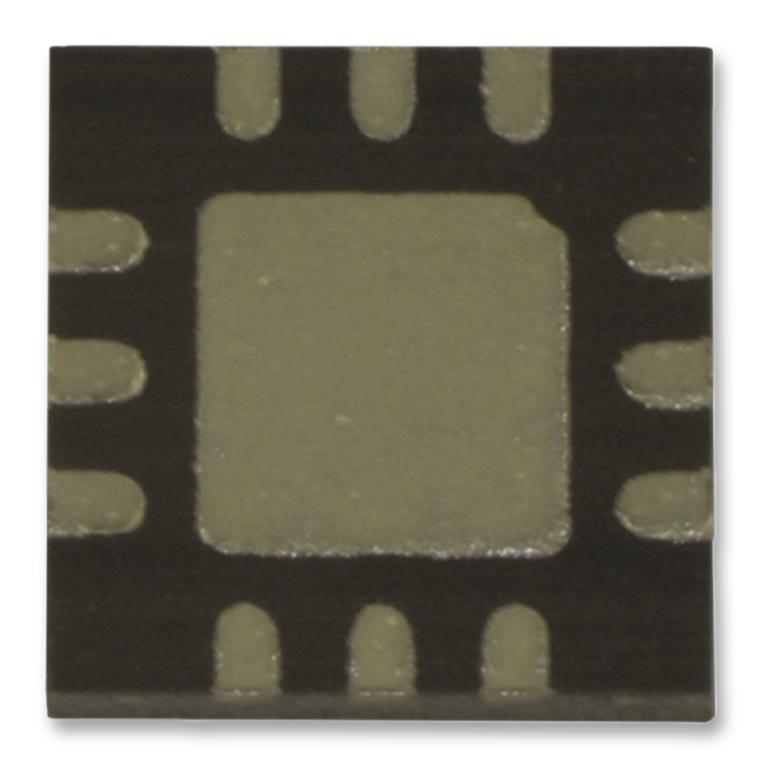

- Package: 12-pin SWTQFN-EP
- Dimming: PWM and analog control, with internal ramp frequency of 200Hz
- Supply Current (no switching): Approx. 3.5mA at Ta=25°C
- Voltage Regulation: 4.85V to 5.125V
- Maximum Continuous Current: 150mA for Vcc regulator
- Spread Spectrum Modulation: ±6% frequency variation
- Peak Currents: NDRV up to 1A, PWM driver supports 50mA sink and 25mA source
- Long-term Reliability: Automotive-qualified, AEC-Q100 compliant
Buy the Maxim MAX25611B – Reliable Automotive LED Driver for Industrial Applications
Purchase the Maxim MAX25611B online now to ensure your automotive lighting system benefits from high efficiency, robust protection features, and flexible configuration options for long-lasting, safe performance in demanding environments.
Order your Maxim MAX25611B high-voltage LED driver today and enhance your automotive exterior lighting projects with dependable, compliant performance.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX25611BATCVY?
You can click on the BUY or RFQ button to purchase MAX25611BATCVY from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX25611BATCVY?
You can download the MAX25611BATCVY datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX25611BATCVY?
MAXIM INTEGRATED / ANALOG DEVICES
