MAXIM INTEGRATED / ANALOG DEVICES MAX274AENG Active Filter Module
The MAX274/MAX275 are continuous-time active filters designed for high-performance applications. They consist of cascadable 2nd-order sections, enabling 4th- or 8th-order filter configurations for use in anti-aliasing, DAC smoothing, audio, sonar, and avionics. They operate from a single +5V or dual +5V supplies, offering low noise, high accuracy, and superior dynamic performance with no clock noise. Features include programmable responses for Butterworth, Chebyshev, and Bessel filters, with center frequencies up to 150kHz for MAX274 and 300kHz for MAX275, and total harmonic distortion better than -89dB.
MAXIM INTEGRATED / ANALOG DEVICES MAX274AENG Active Filter Module Specifications:
- Center-Frequency Range: 150kHz for MAX274, 300kHz for MAX275
- Total harmonic distortion: better than -89dB for MAX274, -86dB for MAX275
- Power Supply: Single +5V or dual +5V supplies
- Operating Temperature Range: 0°C to +70°C for MAX274, -40°C to +70°C for others
- Pin Count: 24 or 28 depending on variant
- Maximum Operating Frequency: 10 MHz
- Gain-Bandwidth Product: 75 MHz
- Output Voltage Swing: ±4.5V with 5kΩ load
- Input Voltage Range: -0.3V to +0.3V beyond supply rails
- Power Dissipation: up to 1W, derated above 70°C
- Noise Density: based on typical harmonic distortion measurements
- Resistor Tolerance: 1%, 0.1%, or better from manufacturers like Dale, KOA Speer, and Precision Resistive Products
- Maximum Resistor Value: 4MΩ to avoid parasitic effects
- Filter Response Types: Butterworth, Chebyshev, Bessel, elliptic (via software)
- Physical Package Options: Narrow DIP, Wide SO, CERDIP, with recommended layout practices
- Pin Connectors: BNC, banana jacks for evaluation kits
- Operational in both single and dual supply configurations, with proper bypassing

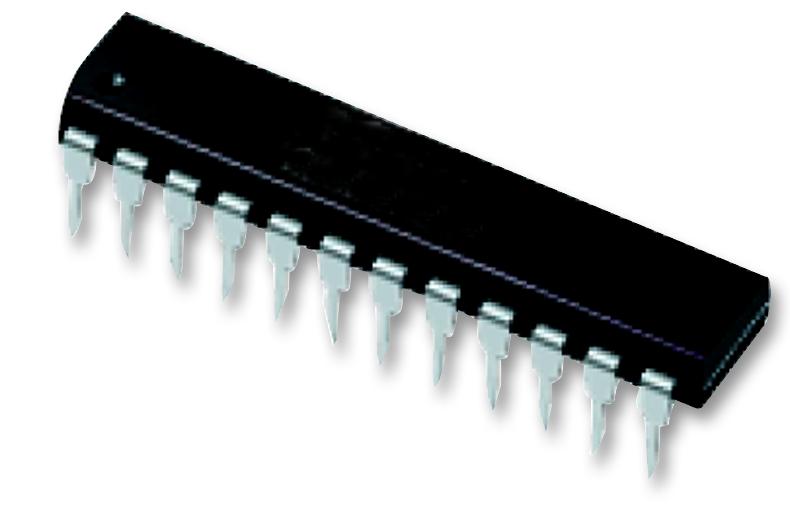

Buy the Buy Maxim MAX274 Part Number MAX274AENG Online
Experience top-tier active filtering with Maxim's MAX274 fixed frequency active filter. Ideal for anti-aliasing and signal smoothing in audio and sonar systems, it operates from a single +5V supply, offering low noise, high accuracy, and superior dynamic response. Easy to implement, the MAX274 supports numerous filter responses including Butterworth, Chebyshev, and Bessel, and can be cascaded for higher orders. Perfect for engineers seeking reliable, high-performance filtering solutions online.
Buy Maxim MAX274AENG now and experience unmatched reliability and performance in high-frequency active filtering applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX274AENG?
You can click on the BUY or RFQ button to purchase MAX274AENG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX274AENG?
You can download the MAX274AENG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX274AENG?
MAXIM INTEGRATED / ANALOG DEVICES
