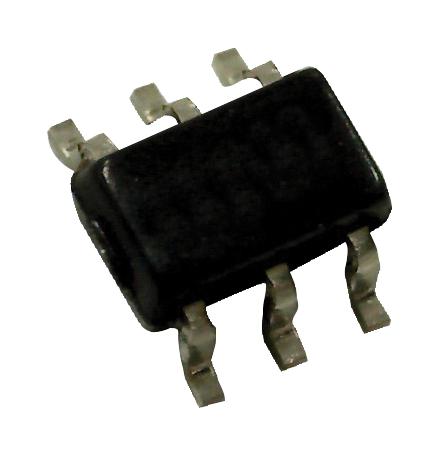

MAXIM INTEGRATED / ANALOG DEVICES MAX2609EUTT Integrated VCO Module
The MAX2609 is a high-performance, wide-range integrated IF voltage-controlled oscillator (VCO) designed for demanding portable wireless communication systems. It features a monolithic design, low phase noise, low power consumption, and integrated varactor and feedback capacitors, eliminating external tuning components. Operating from 45MHz to 650MHz, it offers differential or single-ended outputs with an external inductor to set frequency. Its compact SOT23-6 package and low supply voltage make it ideal for mobile, GPS, and radio applications, providing reliable frequency tuning with minimal external parts.
MAXIM INTEGRATED / ANALOG DEVICES MAX2609EUTT Integrated VCO Module Specifications:
- Frequency Range: 45MHz to 650MHz
- Supply Voltage: +2.7V to +5.5V
- Package: SOT23-6
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ±2.75 MHz (at ambient temperature)
- Output Power: Approx. 10 dBm single-ended
- Phase Noise: -93 to -107 dBc/Hz at 100kHz offset (typical)
- Harmonics: -30 dBc or better (differential)
- Maximum Operating Current: 36 to 75 mA depending on model
- Tuning Voltage Range: 0.4V to 2.4V
- Inductor Required: 8.0 to 15.0 nH
Buy the Maxim MAX2609U– Reliable Wide-Range IF Oscillator for Wireless Systems
Purchase the Maxim integrated VCO module online now to ensure stable and reliable frequency control for your wireless communication projects. The MAX2609 provides wide frequency range (45-650MHz), low phase noise, and a compact design, ideal for portable systems, GPS receivers, and land mobile radios. Its integrated varactor and feedback capacitors simplify your design process, reducing external parts. With a robust 6-pin SOT23 package and flexible operation from 2.7V to 5.5V, ordering online grants quick access to a high-performance oscillator for demanding RF applications, ensuring your system's stability and accuracy.
Order your Maxim MAX2609 integrated IF VCO today and ensure dependable frequency tuning for mobile, GPS, and radio applications with minimal external components.
