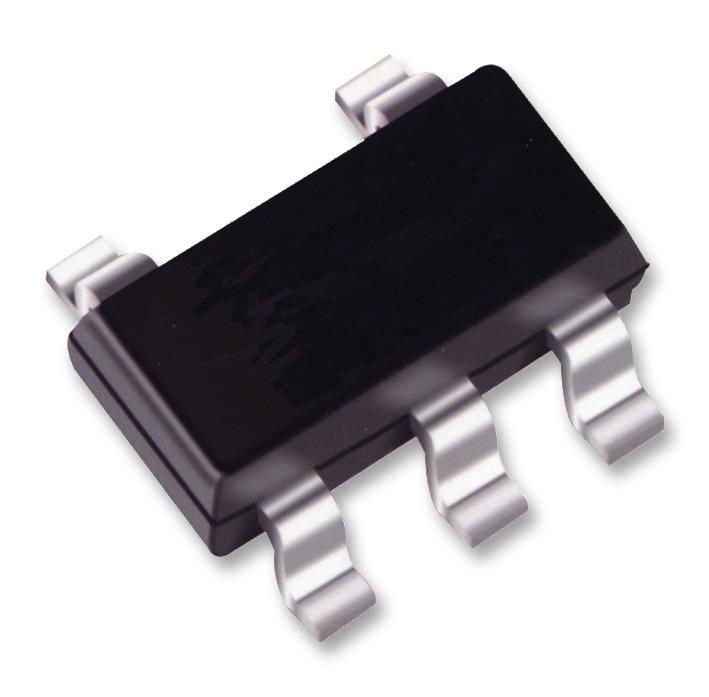

The DS1819CR-10+T&R is a 3.3V MicroMonitor in 5 pin SOT-23 package. This device monitors three vital conditions for microprocessor such as power supply, software execution and external override. A precision temperature compensated reference and comparator circuit monitors the status of VCC. When an out of tolerance condition occurs, an internal power fail signal forces reset to active state. The reset signal is kept in active state for a minimum of 140ms to allow the power supply and processor to stabilize when VCC returns to an in tolerance condition. The DS1819C performs pushbutton reset control. It debounces the pushbutton input and generates an active reset pulse width of 140ms minimum. It is pin and function compatible with MAX823/24/25 devices.




Supply voltage range from 1V to 5.5V

Operating temperature range from -40°C to 85°C

Halts and restarts an out of control microprocessor

Holds microprocessor in check during power transients

Automatically restarts microprocessor after power failure

Monitors pushbutton for external override

Eliminates the need for discrete components

VCC trip point is 3V and reset active time is 200ms

Accurate 10% microprocessor power monitoring and operating current of 8μA

Active-high, push-pull and active-low, push-pull reset output
