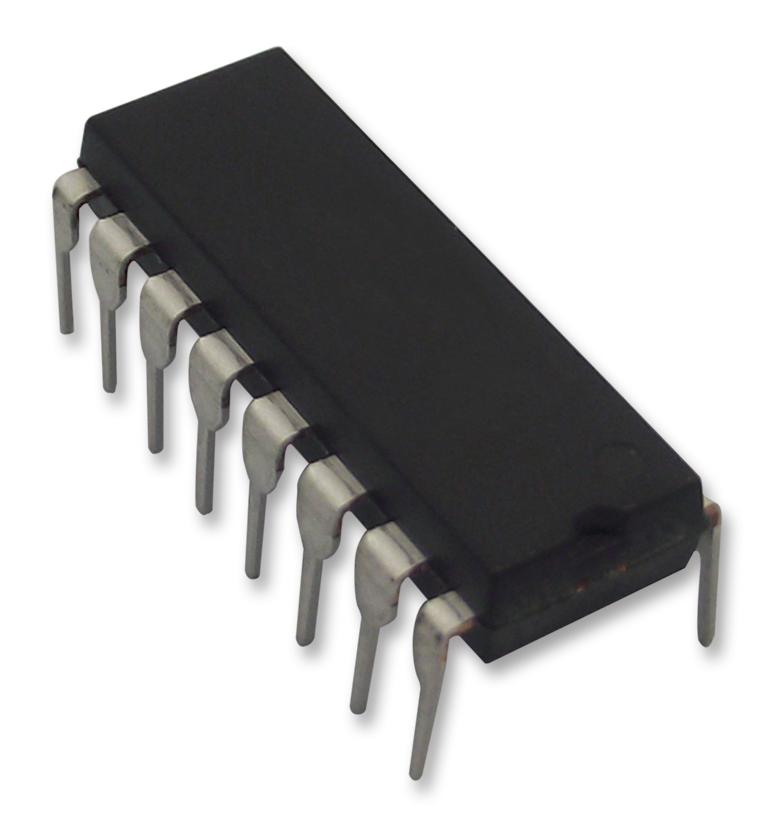

MAXIM INTEGRATED / ANALOG DEVICES MAX534ACPE Quad DAC
The MAX534ACPE+ from Maxim Integrated Products is an 8-bit, low-power, quad voltage output digital-to-analog converter (DAC) with rail-to-rail output buffers, housed in a 16-pin DIP package. This serial-input DAC operates from a single +5V supply, featuring a double-buffered interface with a 12-bit input shift register, four 8-bit buffer registers, and DAC registers. It allows independent or simultaneous register updates via software, with control pins for synchronized operations. Suitable for digital gain and offset adjustments, programmable attenuators, and current sources, it operates between 4.5V and 5.5V, consumes 0.8mA, and ensures monotonic, accurate output with ±20mV zero code error and ±30mV full-scale error.
MAXIM INTEGRATED / ANALOG DEVICES MAX534ACPE Quad DAC Specifications:
- Resolution: 8 Bits
- Supply Voltage: +4.5V to +5.5V
- Output Buffer: Rail-to-Rail Swing
- Power Consumption: 0.8mA active, 2.5μA shutdown
- Zero Code Error: ±20mV
- Full-Scale Error: ±30mV
- INL: ±1LSB, guaranteed monotonic
- Slew Rate: 0.6V/μs
- Serial Interface: SPI, QSPI, Microwire compatible
- Max Serial Clock Frequency: 10MHz
- Number of Outputs: 4 voltage channels
- Package: 16-pin DIP
- Operating Temperature Range: 0°C to 70°C
- Digital Inputs: 12-bit data with control bits
- Asynchronous Reset: Resets registers and interface
- Additional Controls: LDAC and CLR pins for synchronized register update or clear
- Applications: Signal adjustment, programmable filters, calibration, programmable current sources
Buy the Maxim MAX534ACPE – Reliable Quad DAC for Industrial Applications
Secure your MAX534ACPE from authorized distributors today to enhance your electronic projects with precise, low-power, 8-bit voltage outputs. This quad DAC offers rail-to-rail buffers, seamless interface compatibility with SPI, QSPI, and Microwire, and low supply current for efficient operation. Ideal for digital gain, offset adjustment, programmable attenuators, and calibration tasks, it guarantees accuracy with minimal zero and full-scale errors. Its compact 16-pin DIP package and robust features make it perfect for industrial automation, instrumentation, and precision control systems. Purchase online now for reliable, high-performance digital-to-analog conversion.
Order your Maxim MAX534ACPE today and give your projects the dependable accuracy and low power performance needed for industrial signal processing applications.
