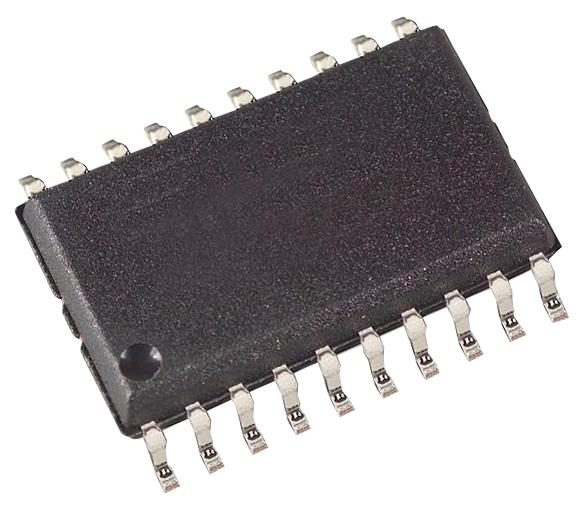

MAXIM INTEGRATED / ANALOG DEVICES MAX270CWP Dual Lowpass Filter
The MAX270CWP is a dual second-order continuous-time lowpass filter designed for anti-aliasing, DAC smoothing, and low-noise filtering in industrial applications. It features independently programmable cutoff frequencies from 1kHz to 25kHz, high dynamic range of 96dB, and operates without external components. The device includes an uncommitted op amp for MAX270 and an internal track-and-hold for MAX271, making it suitable for anti-aliasing, output smoothing, and low-noise systems with cascaded configurations. Its continuous-time architecture eliminates clock noise and aliasing, providing reliable, high-performance filtering.
MAXIM INTEGRATED / ANALOG DEVICES MAX270CWP Dual Lowpass Filter Specifications:
- Type: Dual second-order continuous-time lowpass filter
- Cutoff Frequency Range: 1kHz to 25kHz
- Dynamic Range: 96dB
- Bandwidth: Approximately 2MHz
- Input Impedance: About 5MΩ at DC, decreasing at higher frequency
- Filter Gain: 0 dB at passband
- Maximum Gain (Peaking): 0.15 dB
- Filter Noise: 38uVRMS at 25kHz, 12uVRMS at 1kHz
- Power Supply: ±5V typical, with options for single supply 4.75V to 16V
- Power Dissipation: Max 889mW (MAX270 PDIP), 800mW (MAX270 SO)
- Operating Temperature Range: 0°C to +70°C (MAX270), -40°C to +85°C (MAX270E)
- Package: 20-pin PDIP or Wide SO
- Built-in uncommitted op amp (MAX270) or track-and-hold (MAX271)
- Shutdown Mode: Quiescent current <15μA
- Control: Digital programming with internal memory or pin-strap mode
- Additional: Cascadable for higher-order filters, low power consumption
