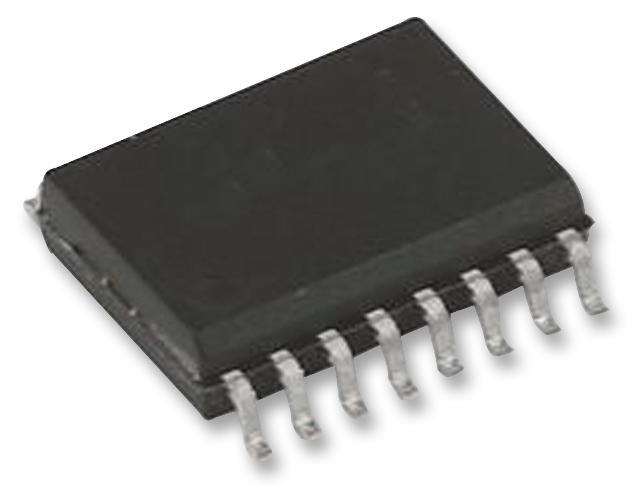

MAXIM INTEGRATED / ANALOG DEVICES MAX292EWE Lowpass Bessel Filter
The MAX292EWE+ is an 8th order low-pass switched-capacitor Bessel filter housed in a 16-pin WSOIC package. It offers low overshoot and rapid settling, with fixed responses that simplify design by primarily requiring selection of the clock frequency to set the filter's corner frequency. The device can generate the clock internally using an oscillator or accept an external clock signal. An uncommitted operational amplifier with a grounded non-inverting input is included, allowing additional continuous-time filtering for purposes such as anti-aliasing or post filtering. The MAX292EWE+ provides high performance in a compact form factor with minimal external components, making it suitable for applications like ADC anti-aliasing, noise analysis, DAC post-filtering, and line noise filtering at 50Hz/60Hz.
MAXIM INTEGRATED / ANALOG DEVICES MAX292EWE Lowpass Bessel Filter Specifications:
- Type: Lowpass Switch-Capacitor Bessel Filter
- Order: 8th
- Configuration: Fixed response, primarily clock frequency adjustable
- Corner Frequency Range: up to 50kHz
- Package: 16-pin WSOIC
- Internal Oscillator: Yes, with external capacitor option
- External Clock Input: Yes
- Uncommitted Op Amp: Grounded non-inverting input, ideal for anti-aliasing
- Gain: Unity (buffer configuration)
- Supply Voltage: +4.75V to +11.0V (single supply)
- Input Impedance: Effective switched-capacitor resistor, inversely proportional to clock frequency
- Input Voltage Range: V+ to V- (±5V typical)
- Total Harmonic Distortion: Less than -70dB at 100kHz
- Noise Performance: THD + Noise around -70dB
- Operating Temperature: 0°C to +70°C
- Input Resistance: Approximately 22kΩ (buffered)
- Application: ADC anti-aliasing, noise analysis, DAC post-filtering, line noise filtering
Buy the Maxim Series MAX292 EWE: Lowpass Bessel Filter: 8th-Order
Order the Maxim MAX292EWE+ online now to experience high-performance 8th-order lowpass filtering with rapid settling and minimal external components. Its internal oscillator offers flexible clock generation, making it suitable for ADC anti-aliasing, DAC post-filtering, and noise reduction. The compact 16-pin WSOIC package ensures easy integration into your designs. With its fixed response and cost-effective design, the MAX292EWE+ is perfect for precision instrumentation, line noise filtering, and sensitive analog signal processing in diverse industrial applications. Purchase today for reliable, high-quality filtering in a small form factor.
Get Maxim MAX292EWE+ today—built for precision and low output overshoot in anti-aliasing and noise filtering applications.
