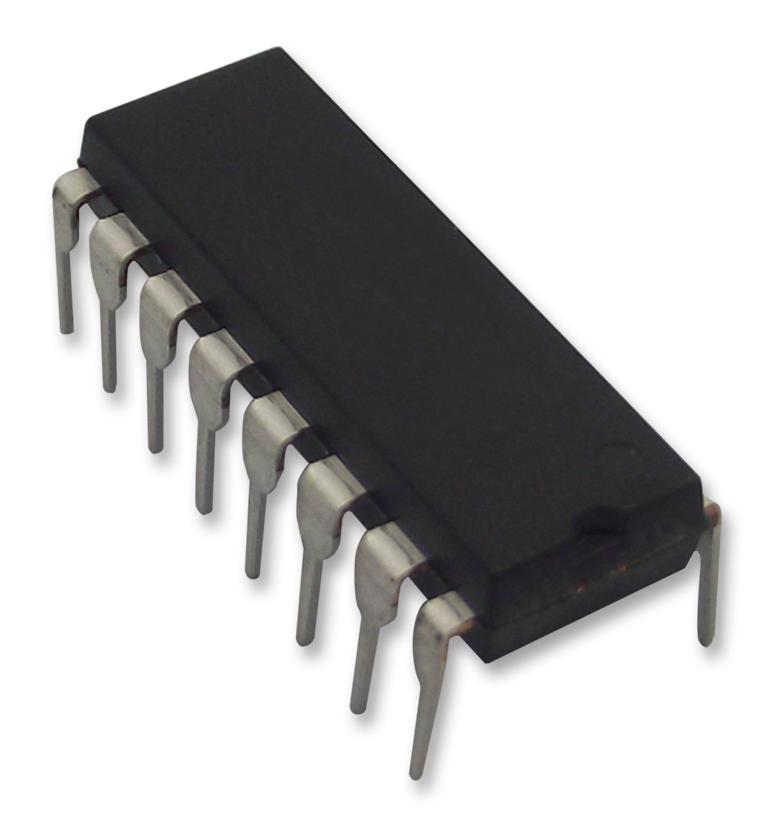

MAXIM INTEGRATED / ANALOG DEVICES MAX691ACPE Microprocessor Supervisory Circuit
The MAX691A/MAX693A/MAX800L/MAX800M are high-performance, pin-compatible microprocessor supervisory circuits designed to ensure reliable system operation. They feature a 200ms power-up reset delay, low supply current of 30uA, and a 6ns chip-enable propagation delay. These devices offer power-fail warning, separate watchdog outputs, backup-battery switchover, and valid RESET outputs down to 1V supply. Available in various packages, they are ideal for computers, controllers, and power monitoring applications requiring precise voltage monitoring, system reset control, and battery backup management.
MAXIM INTEGRATED / ANALOG DEVICES MAX691ACPE Microprocessor Supervisory Circuit Specifications:
- Supply Current: 30uA operating, 1A max battery switchover current
- Reset Delay: 200ms active timeout during power-up
- Chip-Enable Propagation Delay: 6ns max
- Reset Threshold Voltages: 4.65V typical (MAX691A, MAX800L), 4.4V typical (MAX693A, MAX800M)
- Power-Fail Accuracy: to +2%
- Operating Voltage Range: 4.75V to 5.5V (MAX691A, MAX800L), 4.5V to 5.5V (MAX693A, MAX800M)
- Temperature Range: -55°C to +125°C (Certain versions), 0°C to +70°C (Standard versions)
- Packages Available: 16-pin TSSOP, Narrow SO, Wide SO, Plastic DIP
- Maximum Vcc Fall Time: 0.03V/μs to ensure transient immunity
- Open-drain RESET outputs, with external pull-down resistor for valid low level
- Battery switchover threshold hysteresis: 60mV
- External oscillator for watchdog and reset timing, selectable via OSC IN and OSC SEL
- Power-fail comparator delay: typical 25μs, with hysteresis to prevent noise triggering
- Voltage monitor: active in power-fail and low-battery warning modes
- Built-in charge and switchover circuitry for backup batteries or SuperCaps
- Supports both single and dual power supply configurations
