MAXIM INTEGRATED / ANALOG DEVICES MAX31343SHLD RTC Evaluation Board

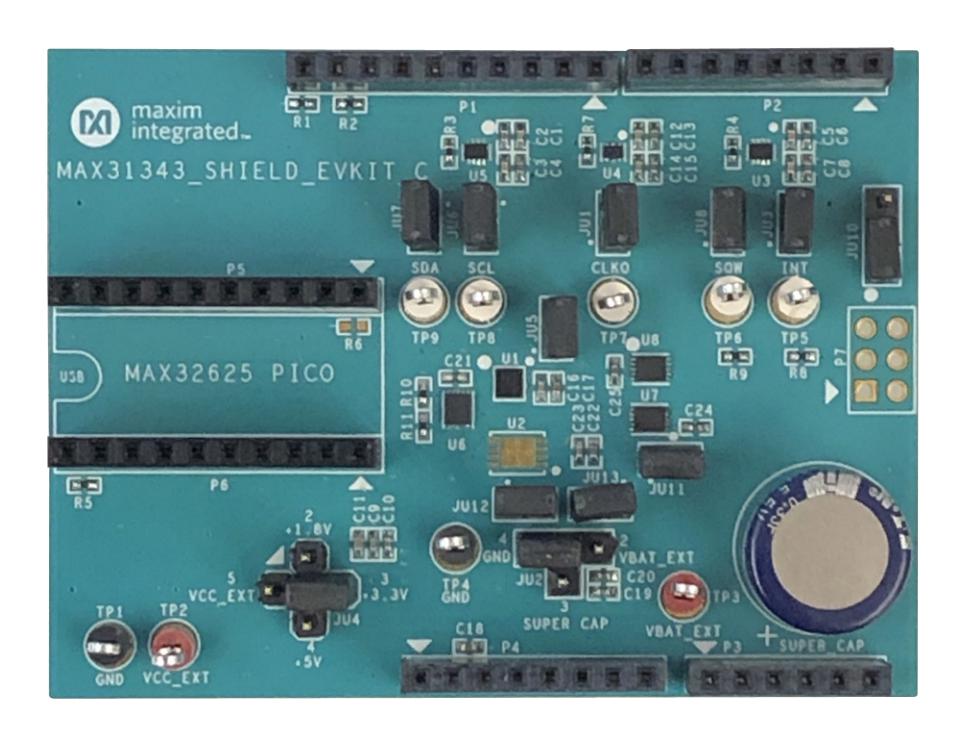

The MAX31343 shield is a high-precision, temperature-compensated real-time clock (RTC) evaluation board featuring an internal MEMS resonator that eliminates the need for an external crystal. This fully assembled and tested PCB connects to a MAX32625 PICO microcontroller via I2C interface, operating from a single supply of 1.6V to 5.5V. It offers accurate timekeeping with features like multiple alarms, programmable square-wave output, power failure detection, and automatic backup switching, making it ideal for system maintenance and precise time tracking in various applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX31343SHLD RTC Evaluation Board Specifications:
- Operating Voltage: 1.6V to 5.5V
- Accuracy: within +0.432 seconds/day from -40°C to +85°C
- Interface: I2C serial
- Features: multiple alarms, programmable square wave, power failure detection, backup power switch, automated date correction for leap years
- Power Modes: active, backup with power fail detect
- Crystal: Integrated MEMS resonator, eliminates external crystal requirement
- Package Type: WLP and TDFN options
- Current Consumption: approximately 940 nA in timekeeping mode
- Timekeeping Data: seconds, minutes, hours, day, date, month, year, and century
- Alarm and Timer Functions: two programmable alarms and a configurable timer
- Backup Power: supercapacitor or external supply
- Supported Operating Temperature Range: -40°C to +85°C
- Includes: assembled MAX32625 PICO board, USB cable, evaluation software, and jumpers for configuration
Buy the Buy Maxim Integrated MAX31343SHLD Part Number MAX31343SHLD Online
Order the MAX31343 evaluation shield today and enhance your system with a highly accurate, temperature-compensated real-time clock. This fully assembled PCB is designed for easy integration, providing precise timekeeping, multiple alarms, and power failure detection. Compatible with the MAX32625 PICO microcontroller, it supports flexible power options and offers a zero-assembly solution for testing and development. Ensure your projects run on the most reliable and accurate clock technology by purchasing online now for fast delivery and comprehensive support.
Buy Maxim Integrated MAX31343SHLD now and experience unmatched precision and reliable timekeeping with integrated MEMS technology.
