MAXIM INTEGRATED / ANALOG DEVICES MX574AJN 12-bit Analog-to-Digital Converter
The MX574AJN+ is a high-performance, 12-bit analog-to-digital converter in a 28-pin DIP package. It offers rapid conversion speeds, low power consumption, and on-chip clock and voltage reference. Built with Maxim's BiCMOS process, it minimizes power dissipation to about 150mW. Its internal buried Zener reference ensures low noise, low drift, and accuracy. Supports versatile analog input ranges of 0 to +10V or +20V unipolar, and ±5V or ±10V bipolar via pin strapping. Compatible with 8-, 12-, and 16-bit bus architectures, controlled via chip select, enable, and read/convert signals. Ideal for digital signal processing, high-precision control, fast data acquisition, and electro-mechanical systems.
MAXIM INTEGRATED / ANALOG DEVICES MX574AJN 12-bit Analog-to-Digital Converter Specifications:
- Supply Voltage Range: 11.4V to 16.5V
- Operating Temperature: 0°C to 70°C
- Input Ranges: 0 to +10V, 0 to +20V, ±5V, ±10V (pin strappable)
- Resolution: 12 Bits
- Linearity: ±1 LSB INL
- Conversion Speed: 25µs maximum
- Power Dissipation: approximately 150mW
- Reference Voltage: Internal buried Zener, low drift
- Temperature Coefficient of internal reference: 50ppm/°C
- Data Access Time: 150ns maximum
- Bus Compatibility: 8, 12, 16-bit interfaces
- Control Signals: CS, CE, RIC (3-state control)
- Connector: 28-pin DIP package
- Application Areas: Digital Signal Processing, High-Precision Control, Data Acquisition, Electro-Mechanical Systems

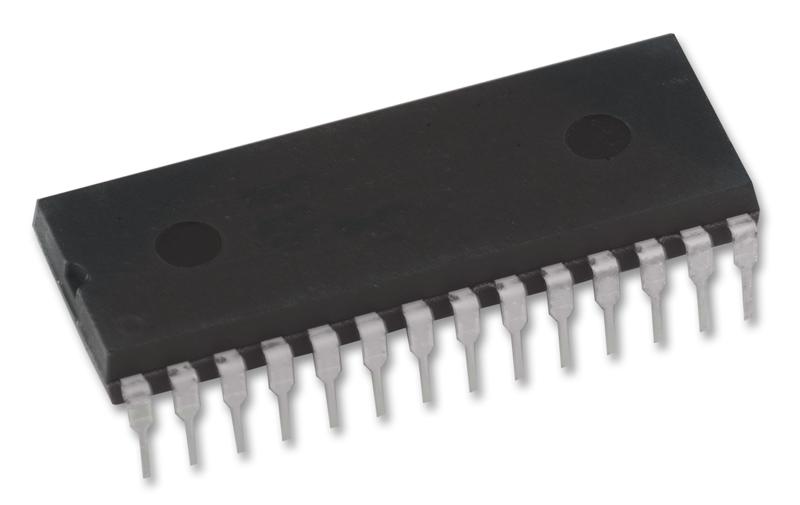

Buy the Maxim Series MX574A 12-Bit ADC: MX574AJN
Purchase the Maxim MX574AJN 12-bit ADC now and upgrade your projects with high-speed, low-noise analog-to-digital conversion. Designed for precision, this ADC provides versatile input ranges, fast conversion times, and low power consumption. Its integrated on-chip clock and voltage reference simplify circuit design, making it ideal for demanding digital signal processing, high-accuracy control systems, and rapid data acquisition applications. Easy to connect with standard microprocessor interfaces, ensuring seamless integration into your evolving electronic systems. Secure your supply today for reliable, efficient digital conversion solutions.
Order your Maxim MX574AJN 12-bit ADC today and enhance your signal processing with fast, low-power performance and versatile input options.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MX574AJN?
You can click on the BUY or RFQ button to purchase MX574AJN from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MX574AJN?
You can download the MX574AJN datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MX574AJN?
MAXIM INTEGRATED / ANALOG DEVICES
