MAXIM INTEGRATED / ANALOG DEVICES MAX9768EVKIT Audio Amplifier Module

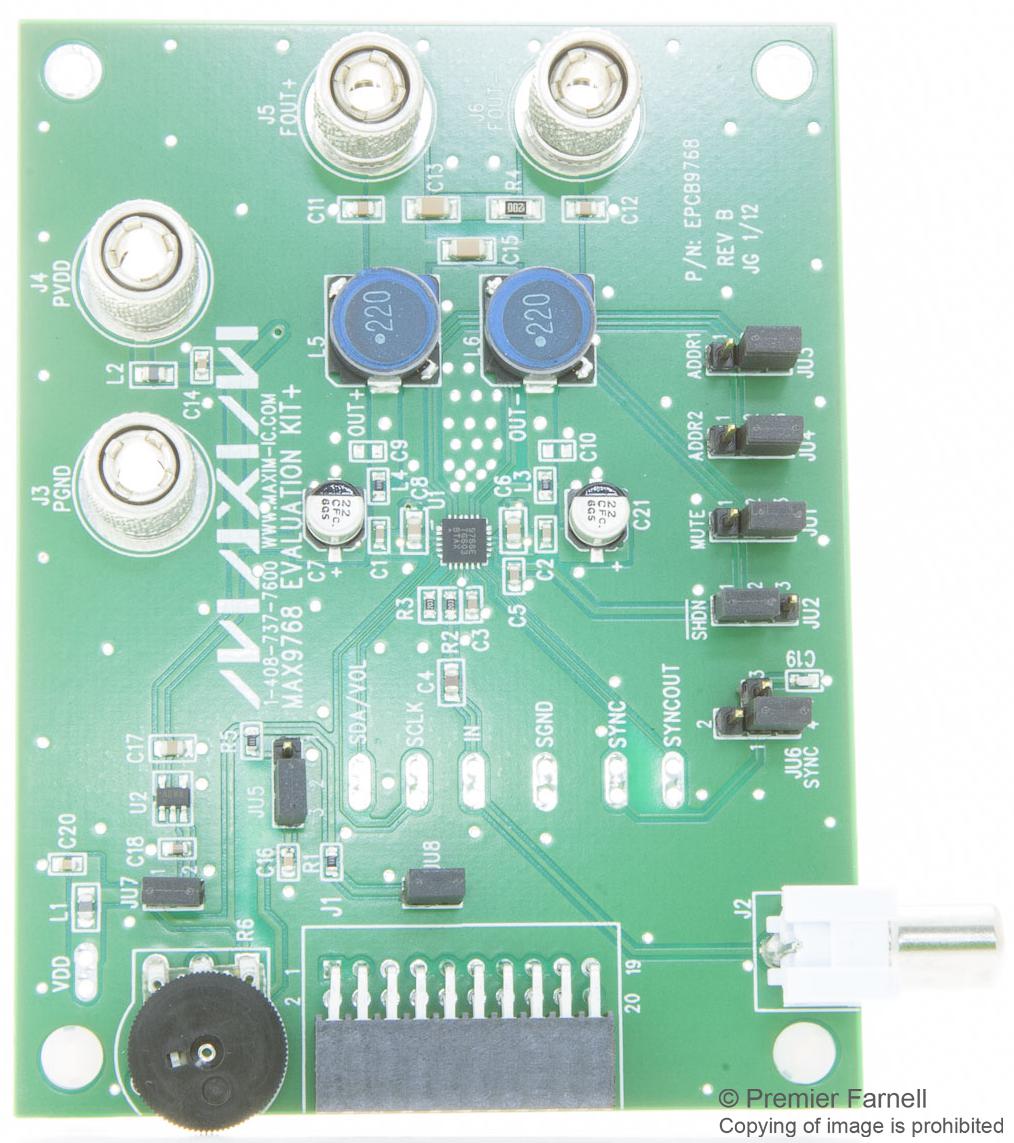

The MAX9768 evaluation kit is a complete, tested PCB designed to showcase the MAX9768 mono 10W Class D speaker amplifier with volume control. It features analog and I2C volume modes, dual modulation schemes, a built-in Low-Dropout regulator, and support for standard audio sources such as CD players. The kit allows easy demonstration of high-power audio amplification, click-and-pop suppression, and shutdown features. Compatible with Windows evaluation software, it includes a serial interface for PC control and is suitable for audio testing and system design validation.
MAXIM INTEGRATED / ANALOG DEVICES MAX9768EVKIT Audio Amplifier Module Specifications:
- Power Output: 10W into 8Ω at 13V supply
- Amplifier Type: Mono Class D (Switch-Mode)
- Output: Bridge-Tied Load (BTL) configuration
- Volume Control: Dual Mode - Analog and I2C interface
- Modulation Schemes: Fixed frequency (300kHz), Spread spectrum
- Power Supply: 4.5V to 14V DC, onboard Low-Dropout regulator MAX1726
- Input Type: Line out, headphone jack, or direct audio source
- Input Signal Level: < 1V RMS to avoid clipping
- Control: On-board potentiometer, I2C interface for remote control
- Software Compatibility: Windows 98SE / 2000 / XP
- Includes: USB connectivity, PC control software
- Component Types: Ceramic, electrolytic capacitors; resistors; inductors, connectors
- Physical Dimensions: PCB size approximately 4cm x 4cm, 24-pin TQFN package for amplifier
- Features: Click-and-pop suppression, shutdown mode, mute function, low-voltage analog power
Buy the Maxim Series MAX9768 Audio Amplifier: MAX9768EVKIT
Get your Maxim Series MAX9768 evaluation kit now to unlock powerful 10W mono Class D audio amplification. Designed for easy testing and system validation, it features both analog and I2C volume control, spread spectrum modulation, click-pop suppression, and USB connectivity for seamless PC control. Ideal for engineers and audio system developers, this fully assembled PCB simplifies testing of high-quality audio outputs with minimal setup. Purchase online today and enhance your audio product development with reliable and efficient power amplification.
Order your Maxim Series MAX9768 EV kit today and experience high-power audio amplification with flexible control modes and easy PC integration.
