MAXIM INTEGRATED / ANALOG DEVICES MAXM15463EVKIT DC-DC Converter Module
This evaluation kit is designed for the MAXM15463 synchronous step-down DC-DC converter module. It supports a wide input voltage range from 4.5V to 42V and provides a fixed 3.3V output capable of delivering up to 300mA of current. The module features high efficiency of approximately 80.5% at 24V input and 3.3V output at 150mA load, with a switching frequency of 500kHz. It includes an ENABLE/UVLO input with a resistor-programmable UVLO threshold, a PFM mode for improved light-load efficiency, a fixed 4.1ms soft-start time, and a RESET output with a pullup resistor to VCC. The device also offers overcurrent and overtemperature protection to ensure safe operation.
MAXIM INTEGRATED / ANALOG DEVICES MAXM15463EVKIT DC-DC Converter Module Specifications:
- Input Voltage Range: 4.5V to 42V
- Output Voltage: 3.3V
- Output Current: Up to 300mA
- Efficiency: Approximately 80.5% at 24V in, 3.3V out, 150mA load
- Switching Frequency: 500kHz
- Enable/UVLO Threshold: Resistor-programmable
- Soft-Start Time: 4.1ms
- Protection: Overcurrent and Overtemperature
- Input Capacitor: ≥1uF/50V
- Output Capacitor: 10uF/6.3V ceramic
- Modes: PWM and PFM selectable
- Additional features: RESET output with pullup resistor, EMI filtering options

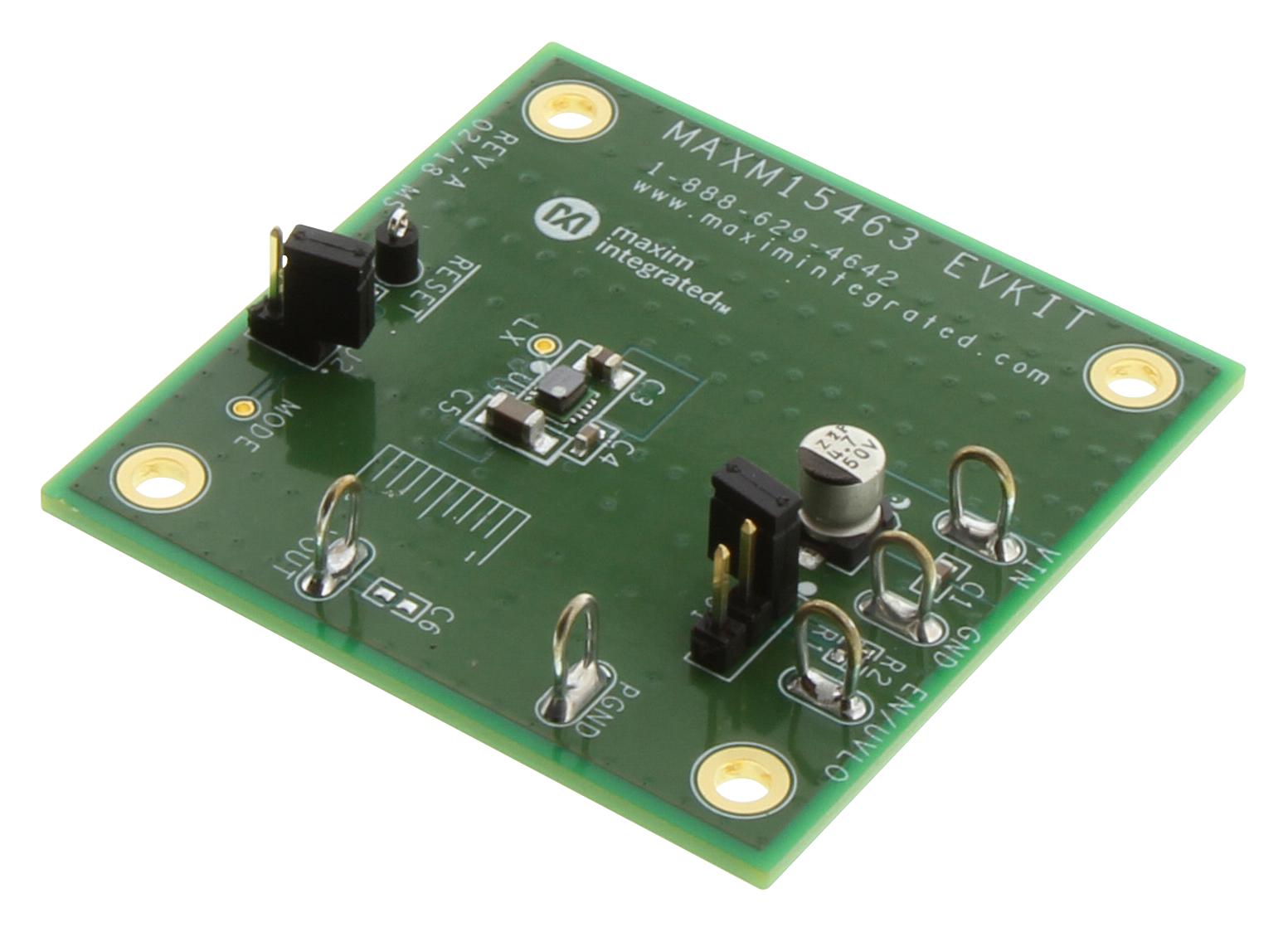

Buy the Buy Maxim Integrated MAXM15463EVKIT Evaluation Kit High-Efficiency Power Module
Purchase the Maxim MAXM15463 evaluation kit online today and enhance your power management solutions. This kit includes a proven design for high efficiency and adjustable features, supporting wide input voltages from 4.5V to 42V and providing a stable 3.3V output at 300mA. It features advanced protection, PFM mode for light load efficiency, and a fixed soft-start for safe startup. Ideal for industrial, embedded, and portable applications, ensuring reliable performance and ease of integration for your power needs.
Order your Maxim MAXM15463EVKIT evaluation kit today and experience reliable, high-efficiency power conversion for your industrial and embedded projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAXM15463EVKIT?
You can click on the BUY or RFQ button to purchase MAXM15463EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAXM15463EVKIT?
You can download the MAXM15463EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAXM15463EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
