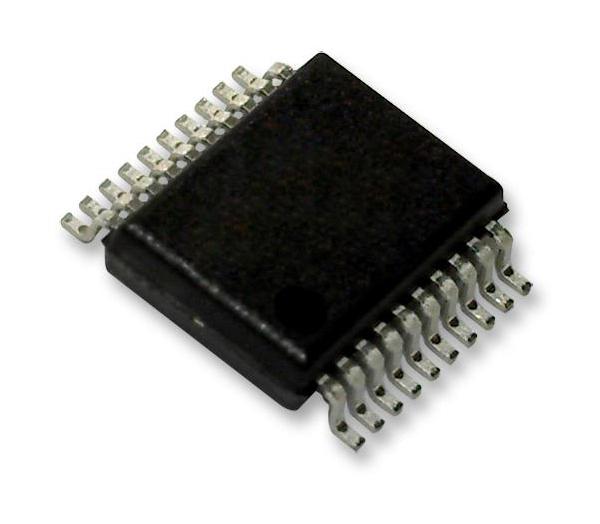

MAXIM INTEGRATED / ANALOG DEVICES MAX3222EAP RS-232 Transceiver
The MAX3222EAP is a low-power, high-speed RS-232 transceiver designed for serial communication applications. Operating from 3.0V to 5.5V, it features a proprietary low-dropout transmitter output stage, enabling true RS-232 performance at data rates up to 120kbps guaranteed, with typical operation at 235kbps. The device uses four external 0.1pF charge pump capacitors to generate the necessary voltage levels, and includes a shutdown mode with ultra-low supply current. It is suitable for notebook, portable, and peripheral communications, supporting quick, reliable serial data transfer in space-constrained electronics.
MAXIM INTEGRATED / ANALOG DEVICES MAX3222EAP RS-232 Transceiver Specifications:
- Supply Voltage Range: 3.0V to 5.5V
- Data Rate: Up to 120kbps guaranteed, typical 235kbps
- External Capacitors: Four 0.1pF charge pump capacitors
- Operation Mode: Normal and shutdown, ultra-low supply current in shutdown
- Output Voltage Swing: +5.0V to -5.0V with loaded conditions
- Operating Temperature: 0°C to +70°C
- Package Type: SSOP, TSSOP
- Input Voltage Range: ±25V RS-232 level signals
- Power Dissipation: 533mW (TSSOP at 70°C)
- Includes proprietary low-dropout transmitter output stage
- Supports quick power-up and shutdown transitions
- Designed for notebook, portable, and peripheral serial link applications
Buy the Buy MAXIM MAX3222EAP Part Number MAX3222EAP Online
Purchase the MAXIM MAX3222EAP online today to ensure reliable serial communication with robust RS-232 levels. Its low power design, high-speed operation up to 235kbps, and minimal external components make it ideal for portable and space-constrained systems. With easy integration, fast switching, and a shutdown mode with ultra-low current, this transceiver guarantees optimal performance for notebooks, peripherals, and high-speed modems. Order now and enhance your serial data interface with proven technology from Maxim.
Buy MAXIM MAX3222EAP now and experience unmatched reliability and performance with space-saving design and low power consumption for serial communication.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX3222EAP?
You can click on the BUY or RFQ button to purchase MAX3222EAP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX3222EAP?
You can download the MAX3222EAP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX3222EAP?
MAXIM INTEGRATED / ANALOG DEVICES
