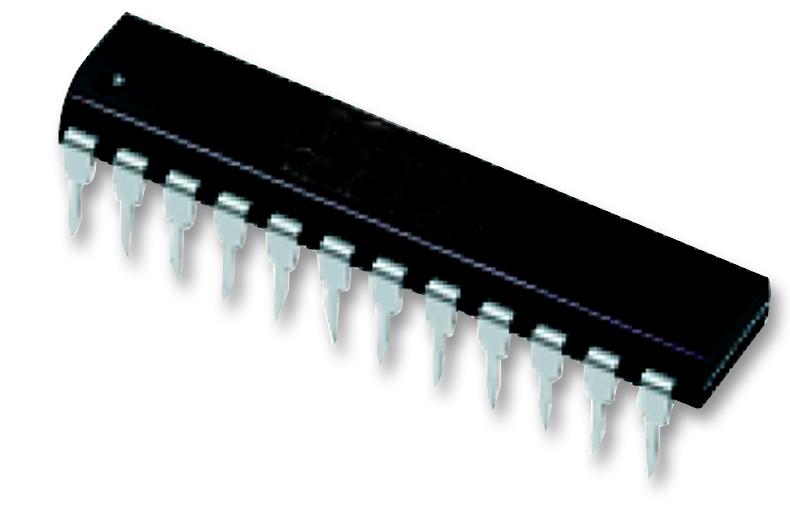

MAXIM INTEGRATED / ANALOG DEVICES MAX6969ANG LED Driver
The MAX6969ANG+ is a 16-channel, constant current LED driver encapsulated in a 24-pin DIP package. It features industry-standard serial communication, allowing data to be shifted into a 16-bit register to control LED states. Each of the 16 open-drain outputs can sink up to 55mA at a voltage of 5.5V, with the current programmed via a single external resistor. The device supports a supply voltage range from 3V to 5.5V and operates within a temperature range of -40°C to 125°C. It is suitable for applications such as variable message signs, marquee displays, traffic signals, and architectural lighting. The device also includes features like output enable, latch control, and PWM input for brightness adjustment, making it versatile for various LED display and lighting projects.
MAXIM INTEGRATED / ANALOG DEVICES MAX6969ANG LED Driver Specifications:
- Number of Outputs: 16 open-drain outputs
- Current per Output: up to 55mA
- Output Voltage: 5.5V
- Supply Voltage Range: 3V to 5.5V
- Operating Temperature: -40°C to 125°C
- Package: 24-pin DIP
- Serial Interface: Industry-standard, 16-bit shift register
- Current Programming: External resistor (Reet)
- Features: Output enable, latch control, PWM brightness adjustment
- Data Shift: MSB first via DIN, clocked by CLK
- Data Out: DOUT for cascading multiple drivers
- Cascading: Supports multiple devices
- Application: LED displays, variable message signs, architectural lighting, traffic signals
- Built-in features: Output enable, latch, PWM control
- LED Drive Current: Programmable, set by external resistor
- Power Dissipation: Dependent on load and PWM duty cycle
