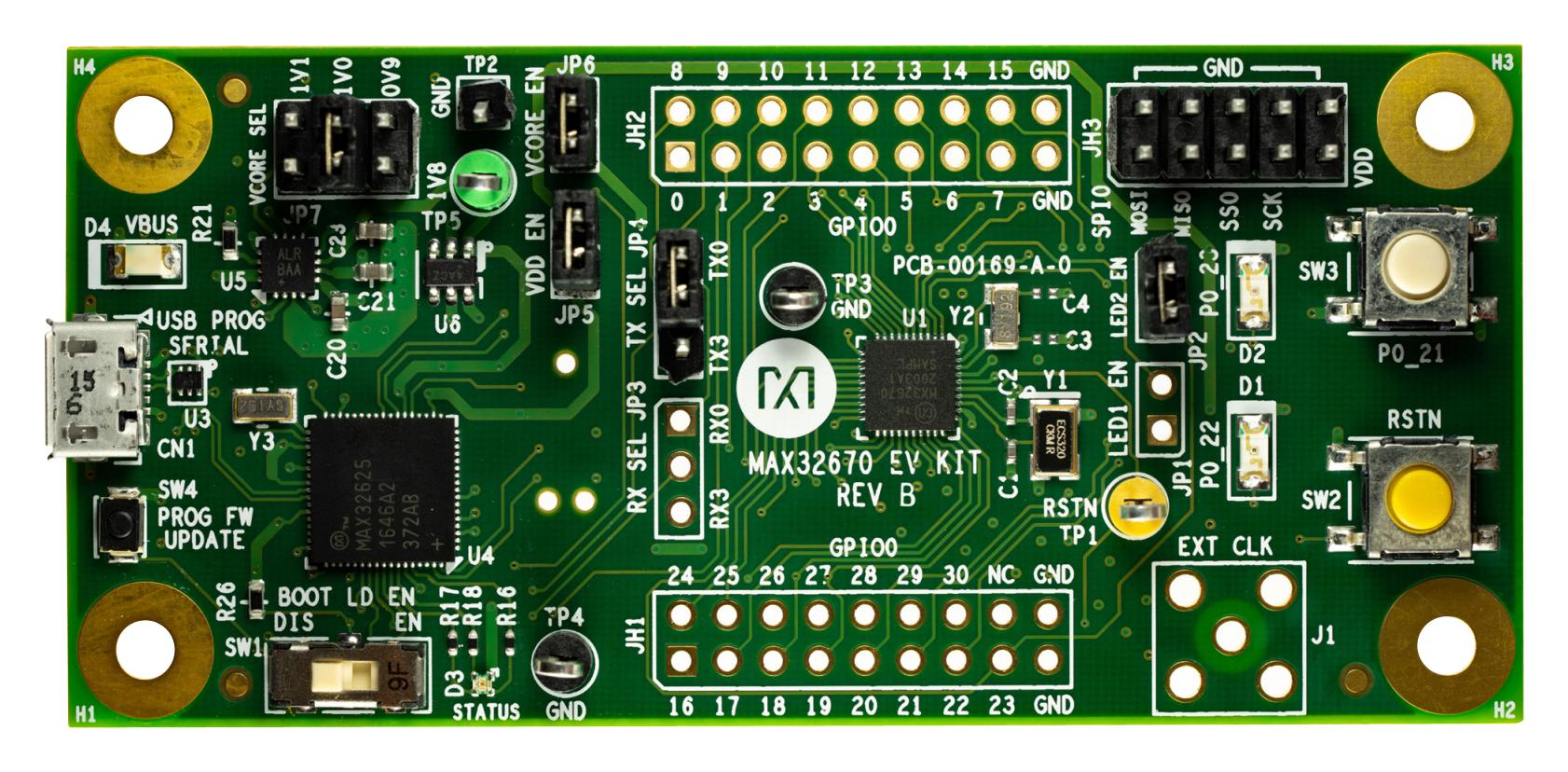

MAXIM INTEGRATED / ANALOG DEVICES MAX32670EVKIT Microcontroller Evaluation Kit
The MAX32670 Evaluation Kit is a comprehensive platform designed for evaluating the MAX32670, a high-reliability, ultra-low-power 32-bit microcontroller with an Arm Cortex-M4 core. It features a USB 2.0 interface, multiple GPIO, UART, SPI, and I2C connectivity options, and an onboard debugger. The kit supports sensor processing applications, offers individual power rail measurement, and includes user-friendly debugging and programming features through a Maxim-based PICO debugger. Ideal for developing and testing advanced embedded systems requiring low power consumption and high performance.
MAXIM INTEGRATED / ANALOG DEVICES MAX32670EVKIT Microcontroller Evaluation Kit Specifications:
- Powered by +5V through Micro USB connector
- Includes USB 2.0 Micro B interface
- Features external 32MHz crystal for clocking
- Includes a MAX32625PICO-based debugger for program debugging
- Supports UART, SPI, and I2C communication via 0.1-inch headers
- Individual power measurement on all IC rails via jumpers
- On-board LEDs and pushbutton switches for user interface
- Power management with onboard LDO and SIMO regulators
- Clock frequency: 32 MHz crystal, RTC: 32.768 kHz crystal
- GPIO and special function headers accessible for customization
- Includes reset button and boot load enable switch
- Onboard indicators for power and activity status
- Temperature range compatible with most embedded applications
- Pull-up and pull-down resistors integrated for signal stability
- Compact design with standardized headers for expansion
Buy the Buy MAXIM Integrated MAX32670 Evaluation Kit Part Number MAX32670EVKIT Online
Get your MAXIM Integrated MAX32670 Evaluation Kit online today to accelerate your embedded development projects. Equipped with USB, GPIO, UART, SPI, and I2C interfaces, onboard debugger, and individual power measurement, this kit simplifies testing and prototyping of complex sensor applications. Compact, reliable, and easy to use, it is perfect for engineers seeking high-performance, low-power microcontrollers for a variety of industrial and consumer electronic designs. Purchase now to unlock rapid prototyping and device optimization capabilities.
Order your MAXIM Integrated MAX32670 Evaluation Kit today and enhance your sensor processing projects with reliable, low-power microcontrollers designed for advanced embedded systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX32670EVKIT?
You can click on the BUY or RFQ button to purchase MAX32670EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX32670EVKIT?
You can download the MAX32670EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX32670EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
