MAXIM INTEGRATED / ANALOG DEVICES MAX7036GTPV ASK Receiver
The MAX7036 is a low-cost, highly integrated ASK/OOK receiver for the 300MHz to 450MHz frequency range. Featuring an on-chip PLL, VCO, mixer, IF filter, and RSSI, it requires minimal external components, making it ideal for cost- and power-sensitive applications. Its low-noise amplifier and automatic gain control ensure reliable signal reception with up to 33kbps Manchester data rate. The device operates on 3.3V or 5V supplies, with a tiny 20-pin thin QFN package, and supports applications like remote controls, garage door openers, and security systems. Its low power consumption and high sensitivity make it suitable for wireless sensor networks and automation systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX7036GTPV ASK Receiver Specifications:
- Operating Frequency Range: 300MHz to 450MHz
- Supply Voltage: 3.3V or 5V
- Supply Current: 5.3mA at 315MHz, 5.8mA at 433MHz
- Deep-sleep Mode Current: 1.27μA
- IF Filter Bandwidth: 200kHz
- Data Rate: up to 33kbps Manchester coding
- Sensitivity: -107dBm at 433MHz
- Power-Down Current: 5.5mA (typ)
- Operating Temperature Range: -40°C to +105°C

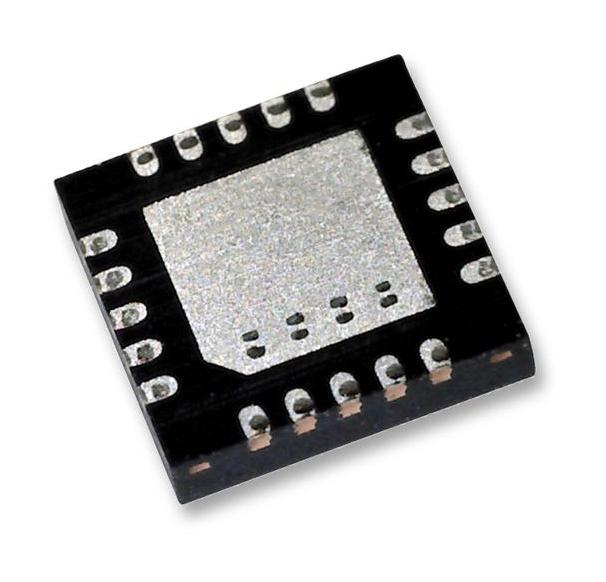

- Package: 20-pin Thin QFN-EP, size 5mm x 5mm
- Input RF Signal Level: -109dBm to 0dBm
- PLL and VCO integrated, external crystal required
- On-chip RSSI and AGC for robust reception
- Supports applications like remote controls, garage doors, and security systems
- Low-noise amplifier and mixer with 55dB voltage gain
Buy the Buy MAX7036 ASK Receiver Part Number MAX7036GTPV Online
Purchase the MAX7036 ASK receiver online today for your wireless applications. With its integrated IF filter, high sensitivity, and low power consumption, this receiver is perfect for remote controls, garage doors, and security systems. Its compact 20-pin small form factor makes integration easy. Designed to operate on 3.3V or 5V supplies, it delivers excellent performance with minimal external components, reducing costs and complexity. Order now to ensure reliable, long-range wireless communication for your automation solutions.
Get MAX7036GTPV today—built for high sensitivity, low power, and reliable wireless signal reception in compact packages.
