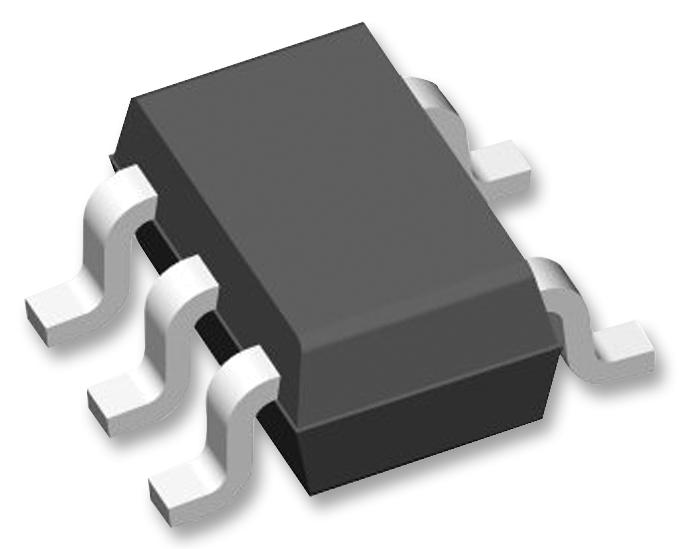

MAXIM INTEGRATED / ANALOG DEVICES MAX8515EXKT Voltage Regulator
The MAX8515EXK is a wide-input 0.6V shunt regulator designed for isolated DC-to-DC converter applications and low-voltage linear regulators. It features an initial accuracy of 0.5% at +25°C and can sink up to 20mA at 0.2V to 18V output, with input voltage ranging from 17V to 28V. The device includes an enable pin, small package options (SC70 and SOT23), and supports overvoltage protection with adjustable trip threshold. Ideal for network, telecom power supplies, and precision voltage references, it offers stable operation over -40°C to +85°C.
MAXIM INTEGRATED / ANALOG DEVICES MAX8515EXKT Voltage Regulator Specifications:
- Input Voltage Range: 17V to 28V
- Output Voltage: 0.6V
- Initial Accuracy: 0.5% at +25°C, 1% from -40°C to +85°C
- Sink Current: Up to 20mA at 0.2V to 18V
- Operating Temperature: -40°C to +85°C
- Power Dissipation: 246.9mW (SC70), 727mW (SOT23)
- Package Types: SC70-5, 5-pin SOT23-5
- Supply Power Consumption: 25mA typical at 2V to 28V
- Input Decoupling Capacitor: 0.1uF
- Output Capacitor: 1uF recommended
- Voltage Regulation: Adjustable via feedback and resistor divider
- Isolation Capabilities: Suitable for optocoupler feedback systems
- Overvoltage Trip Threshold: Adjustable with R3 and R4
Buy the MAXIM Series MAX8515EXK Voltage Regulator: 0.6V, Adjustable, Wide Input Range
Secure your MAXIM Series MAX8515EXK today for high-accuracy, low-voltage shunt regulation ideal for telecom, industrial, and power supply applications. This compact device operates over a wide input voltage range from 17V to 28V, sinking up to 20mA with just 0.2V to 18V output. Its small packages—SC70 and SOT23—are perfect for space-constrained designs. With excellent temperature stability from -40°C to +85°C and an adjustable trip threshold, this regulator offers versatile, reliable performance for demanding power regulation needs. Buy online now to enhance your project’s stability and efficiency.
Order your MAXIM Series MAX8515EXK shunt regulator today and ensure reliable, compact voltage regulation for your isolated DC-to-DC converter projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX8515EXKT?
You can click on the BUY or RFQ button to purchase MAX8515EXKT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX8515EXKT?
You can download the MAX8515EXKT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX8515EXKT?
MAXIM INTEGRATED / ANALOG DEVICES
