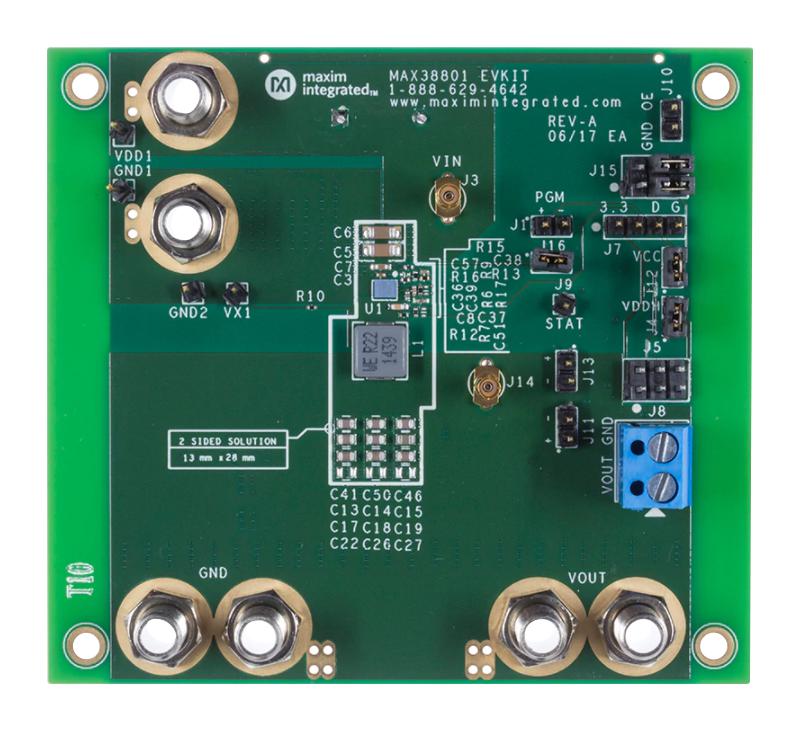

MAXIM INTEGRATED / ANALOG DEVICES MAX38801EVKIT Voltage Regulator Evaluation Kit
The MAX38801EVKIT evaluation kit from Maxim Integrated Products is a comprehensive testing platform for the MAX38801 voltage regulator IC. This single-chip switching regulator offers high efficiency, accuracy, and fast transient response, making it suitable for low-output voltage applications such as DDR memory (VDDQ, VPP, VTT), GPU core supply, I/O, chipset supplies, point-of-load applications, and server power systems. The kit includes a fully assembled and tested PCB with configurable jumpers, test points, and input/output connectors for flexible evaluation. Key features include programmable switching frequency from 400kHz to 900kHz, adjustable voltage and current limits, differential remote sense, and a compact WLCSP footprint. It is capable of operation with ceramic capacitors and supports high efficiency up to 96%. The design incorporates features such as adaptive dead-time control, fast transient response using Quick PWM architecture, and integrated boost switching, making it an ideal reference platform for power management development.
MAXIM INTEGRATED / ANALOG DEVICES MAX38801EVKIT Voltage Regulator Evaluation Kit Specifications:
- Power Regulation: High-efficiency switching regulator
- Input Voltage Range: 6.5V to 14V
- Output Voltage: 1.05V (preset)
- Output Current: Up to 12A
- Efficiency: Up to 96% peak, 92% full load
- Switching Frequency: 400kHz to 900kHz programmable
- Package: 19-bump WLCSP (2.2mm x 2.8mm)
- Features: Differential remote sense, adaptive dead time, boost switch, external Vref option
- Operating Capacity: Compatibility with ceramic input/output capacitors
- Application: Server, GPU, DDR memory power supply, point-of-load
- Protection: Overcurrent, undervoltage, overvoltage lockout
Buy the Maxim Integrated Series MAX38801 Voltage Regulator: MAX38801EVKIT
Purchase the Maxim Integrated MAX38801EVKIT online today and experience a high-performance, compact power regulation solution ideal for server, GPU, and DDR memory applications. This fully assembled and tested kit provides adjustable switching frequency, differential remote sense, and supports ceramic capacitors for high efficiency—up to 96%. Its versatile features include programmable current and voltage limits, adaptive dead-time control, and a compact WLCSP footprint. Designed for developers and engineers, this evaluation kit simplifies testing and development of advanced power management systems, ensuring reliable, efficient, and precise power delivery in demanding applications.
Get Maxim Integrated MAX38801EVKIT today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX38801EVKIT?
You can click on the BUY or RFQ button to purchase MAX38801EVKIT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX38801EVKIT?
You can download the MAX38801EVKIT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX38801EVKIT?
MAXIM INTEGRATED / ANALOG DEVICES
