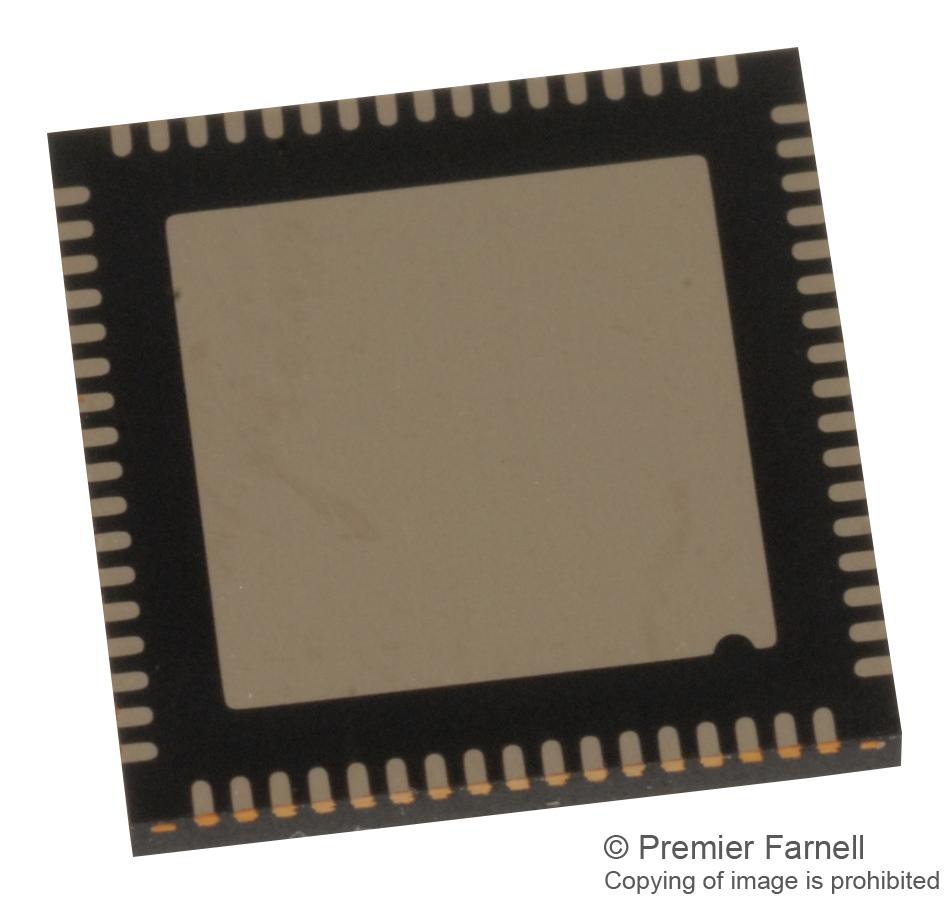

MAXIM INTEGRATED / ANALOG DEVICES MAX9979KCTKD Dual Pin Electronics IC
The MAX9979 is a dual-channel, high-speed pin electronics IC designed for memory and SOC test applications. It integrates pin drivers, comparators, a programmable PMU, DACs, and features cable-droop compensation, adjustable driver impedance, and slew-rate control. Operating over a wide voltage range from -1.5V to +6.5V with high-voltage support up to 13V, it offers low power dissipation, fast timing, and precise control for high-frequency testing and measurement setups. Packaged in a compact 68-pin TQFN-EP form factor with heat removal via an exposed pad.
MAXIM INTEGRATED / ANALOG DEVICES MAX9979KCTKD Dual Pin Electronics IC Specifications:
- Operating Voltage Range: -1.5V to +6.5V (up to 13V VHH support)
- High-speed Data Rate: 1.1Gbps
- Power Dissipation: 1.2W per channel
- Operating Temperature: +40°C to +100°C
- Package: 68-pin TQFN-EP (10mm x 10mm x 1mm), with exposed pad for heat removal
- Total Power: 1.2W/Channel, heat dissipation guaranteed with thermal management
- Output Impedance: Programmable via serial interface, typical resistance around 500Ω
- Cable-Droop Compensation: Programmable with control bits for waveform fidelity at high frequencies
- Slew Rate Control: Four settings for driver output
- Protection Features: Dynamic clamps, high-impedance mode, and high-voltage level support
- Serial Interface: SPI compatible, up to 50MHz for control and calibration
- Voltage Support: Wide range for high-speed logic control and DUT biasing
- Built-in Digital-to-Analog Converters: 14-bit level-setting DACs for precise voltage control
- Power Supply: +9.75V positive, -4.75V negative, +3.3V logic, +17.5V high-voltage support
