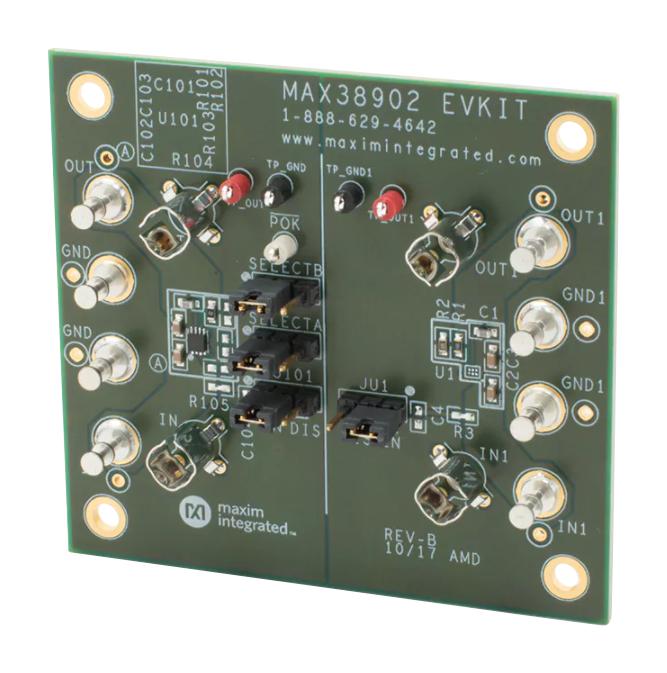

MAXIM INTEGRATED / ANALOG DEVICES MAX38902EVKIT Low Noise Regulator Kit
The MAX38902 evaluation kit from Maxim Integrated is a comprehensive testing solution for low noise linear regulators in TDFN and wafer-level packages. It features two independent circuits to evaluate variants MAX38902A/B and MAX38902C/D, each delivering up to 500mA output current over a 1.7V to 5.5V input range. The kit includes pre-installed MAX38902A-ATA+ and MAX38902C-ANT+ devices, with configurable output voltages from 1.2V to 5.0V (MAX38902A) and 0.6V to 5.3V (MAX38902B and MAX38902C). Its proven two-layer PCB design ensures reliable, compact operation suitable for applications requiring low noise and high power quality.
MAXIM INTEGRATED / ANALOG DEVICES MAX38902EVKIT Low Noise Regulator Kit Specifications:
- Input Voltage Range: 1.7V to 5.5V
- Output Voltage Configurations: 0.6V to 5.3V (adjustable), 1.2V to 5.0V (MAX38902A, jumper configured)
- Maximum Output Current: 500mA per circuit
- IC Packages Evaluated: TDFN (MAX38902A/B), WLP (MAX38902C/D)
- Board Layout: Two-layer, 1 oz copper PCB
- Pre-installed Devices: MAX38902A-ATA+ and MAX38902C-ANT+
- Noise Performance: 12 µVRMS from 10Hz to 100kHz
- Operational Range: Supports input voltage from 1.7V to 5.5V
- Dimensional Compatibility: Fits compact applications in communication, audio, high-resolution data acquisition
- Fully Assembled and Tested: Ensures reliable performance for evaluation and prototyping
Buy the Maxim Series MAX38902 Low Noise Regulator: MAX38902EVKIT
Purchase the Maxim Series MAX38902 evaluation kit online today to experience reliable, high-performance low noise voltage regulation. This fully assembled kit evaluates two different IC packages, providing versatile testing configurations. With adjustable output voltages from 0.6V to 5.3V for the MAX38902C/D variants, and from 1.2V to 5.0V for MAX38902A, the kit delivers up to 500mA current, making it ideal for sensitive applications such as communication systems, audio circuitry, and data acquisition. Its proven PCB design ensures dependable operation, streamlining your development process and reducing time-to-market.
Order your Maxim Series MAX38902EVKIT today and give your projects the dependable, low noise power regulation they deserve.
