MAXIM INTEGRATED / ANALOG DEVICES MAX395EAG 8-Channel Switch
The MAX395EAG+ is a low-voltage, serially controlled 8-channel SPST switch housed in a 24-pin SSOP package. This CMOS device operates from 2.7V to 16V, supporting dual supplies and rail-to-rail signal handling. It features extremely low off-leakage current, with 0.1nA at +25°C and 5nA at +85°C. At power-up, all switches are off, with internal shift registers reset. It offers compatibility with SPI/QSPI, TTL/CMOS inputs, and over 2KV ESD protection. Ideal for signal switching, audio routing, test equipment, and control systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX395EAG 8-Channel Switch Specifications:
- Supply Voltage Range: 2.7V to 16V
- Logic Thresholds: 0.8V to 2.4V
- Off Leakage Current: 0.1nA at +25°C, 5nA at +85°C
- On-Resistance: 100Ω max at ±5V supplies
- ESD Protection: >2KV per method 3015.7
- PIN Compatibility: with industry-standard MAX335
- Signal Handling: Rail-to-rail analog signals
- Applications: Signal routing, audio, control systems, networking
- Operating Temperature: Typical range -40°C to +85°C
- Package: 24-pin SSOP

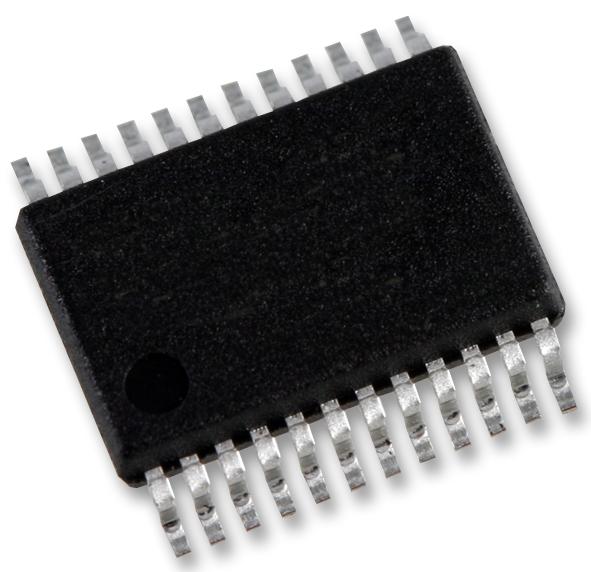

Buy the MAXIM Series MAX395 EAG: 8-Channel SPST Switch
Purchase the MAXIM Series MAX395EAG+ today to enhance your signal routing and automation projects with a versatile, low-voltage 8-channel SPST switch. It offers low off-leakage current, rail-to-rail signal handling, and robust ESD protection, making it suitable for industrial, avionics, audio, and control applications. Its compatibility with SPI and QSPI interfaces allows seamless integration with microcontrollers and data acquisition systems. Secure your order now and benefit from high reliability, compact packaging, and exceptional performance standards for your electronic designs.
Order your MAXIM Series MAX395EAG+ today and ensure reliable signal switching with low leakage and robust electrostatic protection for your control systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX395EAG?
You can click on the BUY or RFQ button to purchase MAX395EAG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX395EAG?
You can download the MAX395EAG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX395EAG?
MAXIM INTEGRATED / ANALOG DEVICES
