MAXIM INTEGRATED / ANALOG DEVICES DS4404N 4-Channel Current DAC
The DS4404N+ is a 4-channel, I2C-adjustable current DAC housed in a 14-pin TDFN package. Each channel can sink or source current with 31 programmable sink and source levels, controlled via the I2C interface. External resistors set the full-scale range and step size for each output. The device is suitable for applications such as power supply adjustment, margining, and adjustable current sinking or sourcing. It operates with a supply voltage between 2.7V and 5.5V, and a temperature range from -40°C to 85°C. Features include an I2C-compatible serial interface, two three-level address pins for up to nine devices on a bus, a typical supply current of 500 μA at 5.5V, and a reference voltage of 1.23V. The maximum SCL clock frequency is 400 kHz.
MAXIM INTEGRATED / ANALOG DEVICES DS4404N 4-Channel Current DAC Specifications:
- Supply Voltage: 2.7V to 5.5V
- Operating Temperature Range: -40°C to 85°C
- Package: 14-pin TDFN
- Number of Channels: 4
- Sink/Source Programmable Levels: 31 each
- External Resistors Set Full-Scale Range
- Full-Scale Current: Up to 20 mA sink, -2.0 mA source
- Reference Voltage: 1.23V
- Maximum SCL Clock Frequency: 400 kHz
- Supply Current: 500 μA typical at 5.5V
- I2C Interface: Compatible with standard protocols
- Address Pins: Two pins for up to 9 device addresses
- Temperature Range: -40°C to 85°C

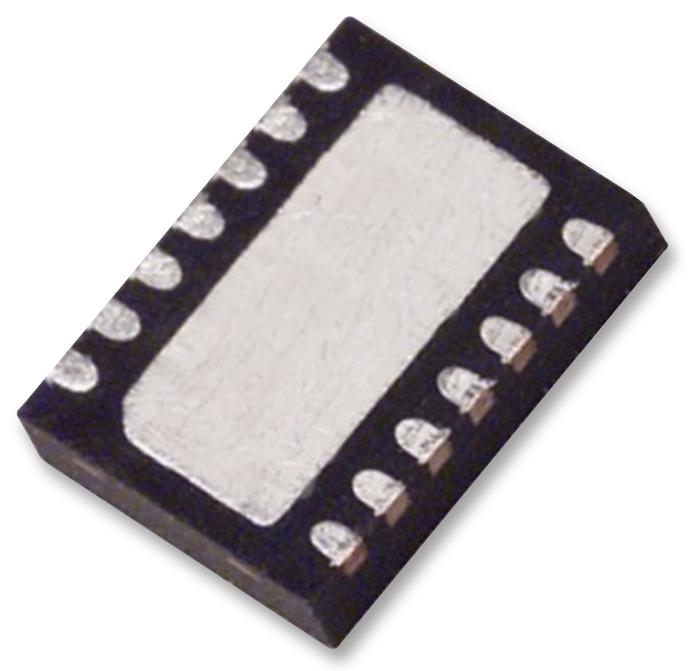

Buy the Maxim Series DS4404 Current DAC: DS4404N
Purchase the Maxim DS4404N online today and experience seamless current regulation for power supplies, instrumentation, and industrial applications. This 4-channel I2C current DAC provides programmable sink and source levels with external resistor settings, offering flexible voltage and current adjustment. Its compact 14-pin TDFN package is perfect for space-constrained designs. Featuring a low operating current of 500 μA, high-speed I2C compatibility up to 400 kHz, and wide voltage operation from 2.7V to 5.5V, the DS4404N is ideal for demanding industrial and power-control systems. Order now for reliable performance.
Get Maxim DS4404N today—built for precise current control and reliable power-supply margining in compact packages.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DS4404N?
You can click on the BUY or RFQ button to purchase DS4404N from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DS4404N?
You can download the DS4404N datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DS4404N?
MAXIM INTEGRATED / ANALOG DEVICES
