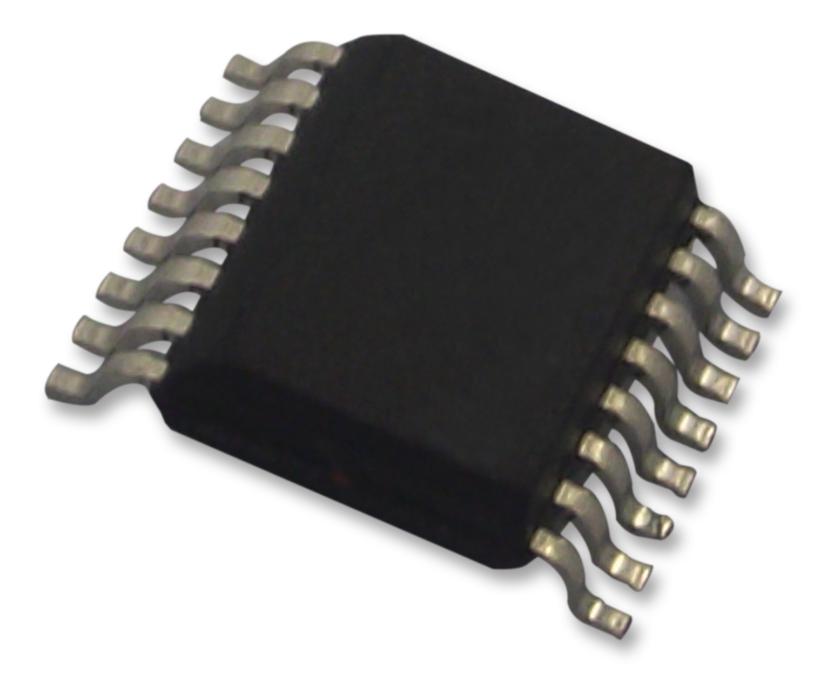

MAXIM INTEGRATED / ANALOG DEVICES MAX4590EAE Dual CMOS Analog Switch
The MAX4590EAE+ is a dual SPST CMOS analog switch encapsulated in a 16-pin SSOP package. It features an on-resistance of up to 0.4 ohms, which remains flat across the specified signal range. The device supports logic thresholds of +0.8V and +2.4V for TTL/CMOS compatibility with single +12V or dual ±15V power supplies. Designed for low distortion applications, it is an excellent replacement for mechanical relays in automatic test equipment, signal switching, and current switching applications. The switch has a supply voltage range from 4.5V to 36V (or ±4.5V to ±20V), an operating temperature range from -40°C to 85°C, and a maximum on-resistance of 3 ohms at room temperature with a single supply. It handles rail-to-rail signals, offers ESD protection exceeding 2KV per method 3015.7, and has very low off-leakage current of 2.5nA at 85°C. The device includes two normally open switches, with turn-on and turn-off times of 150ns and 200ns respectively at 25°C. It features charge injection of 40pC and crosstalk of -65dB, with an on-capacitance of 275pF. Common applications include signal processing, communications, networking, PBX/PABX systems, reed relay replacement, and test equipment.
MAXIM INTEGRATED / ANALOG DEVICES MAX4590EAE Dual CMOS Analog Switch Specifications:
- On-Resistance: up to 0.4Ω at 25°C, flat across signal range
- Supply Voltage Range: 4.5V to 36V, or ±4.5V to ±20V
- Operating Temperature Range: -40°C to +85°C
- Logic Thresholds: +0.8V and +2.4V for TTL/CMOS compatibility
- Turn-On Time: 150ns, Turn-Off Time: 200ns at 25°C
- Charge Injection: 40pC
- Crosstalk: -65dB
- On Capacitance: 275pF
- ESD Protection: >2kV per method 3015.7
- Leakage Current: 2.5nA at 85°C
- Channels: 2 normally open switches
- Application: Signal processing, communication systems, relay replacement
