MAXIM INTEGRATED / ANALOG DEVICES MX7537JP dual 12-bit DAC
The MX7537 is a dual 12-bit multiplying digital-to-analog converter (DAC) featuring separate reference inputs, high accuracy, and thermally matched channels. It offers a microprocessor-friendly interface with fast loading capabilities via parallel inputs, making it suitable for precision applications like automatic test equipment, audio gain, motion control, and process automation. Compact packages like narrow DIP and wide SO ensure easy integration into various electronics systems. Designed for single or dual supply operation, the MX7537 provides excellent linearity, low offset error, and stable temperature performance for high-precision analog output in demanding environments.
MAXIM INTEGRATED / ANALOG DEVICES MX7537JP dual 12-bit DAC Specifications:
- Resolution: 12-bit
- DAC Channels: 2 (A and B)
- Input Voltage Range: +12V to +15V
- Output Type: Current or Voltage (with external amplifier)
- Accuracy: Gain error within +1 LSB, linearity and monotonicity guaranteed
- Temperature Range: 0°C to +70°C or -25°C to +85°C (varies by part)
- Package Options: Narrow DIP (24-lead), Wide SO, 28-lead PLCC
- Power Dissipation: Up to 450mW at 75°C
- Gain Tempco: ±5ppm/°C max
- Output Capacitance: Typically 40pF (to 100pF depending on configuration)
- Interface: 8-bit microprocessor parallel, fast data loading
- Signal Compatibility: TTL, 74HC, CMOS logic levels
- Outputs: Current or voltage (using external amplifier)
- Reference Input Voltage: Wide range, typically +10V to +15V
- Advanced matching: 0.5% DAC-to-DAC matching for channel consistency

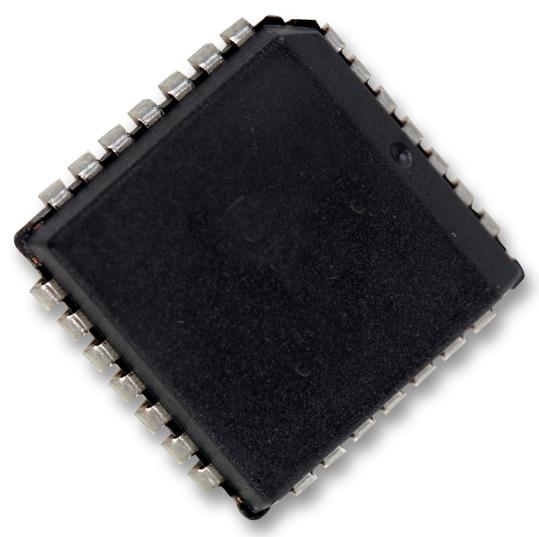

Buy the Maxim Series MX7537 Dual 12-Bit DAC: MX7537JP
Purchase the Maxim MX7537JP online today for high-precision current-output DAC capabilities, excellent temperature stability, and easy microprocessor interfacing. Engineered for accuracy and reproducibility, this dual 12-bit DAC is ideal for automatic testing, audio control, motion systems, and process automation. Its flexible package options, including narrow DIP and wide SO, allow seamless integration into compact or high-performance systems. Rely on the MX7537JP for stable operation, minimal linearity error, and fast parallel load interface, ensuring your project maintains optimal analog performance.
Get Maxim MX7537JP today—built for precision, high-speed data loading, and reliable analog output for demanding industrial and control applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MX7537JP?
You can click on the BUY or RFQ button to purchase MX7537JP from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MX7537JP?
You can download the MX7537JP datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MX7537JP?
MAXIM INTEGRATED / ANALOG DEVICES
