MAXIM INTEGRATED / ANALOG DEVICES MAX41470GTC ASKFSK Receiver
The MAX41470 is a high-performance, low-power ASK and FSK receiver suitable for sub-1GHz industrial, home automation, security, and remote control applications. It features a fully integrated architecture with an internal fractional-N PLL synthesizer, digital demodulation, high RF sensitivity, and supports multiple frequency bands with a single 16MHz crystal. The device operates in a wide voltage range of 1.8V to 3.6V and can achieve data rates up to 200kbps. It includes a low-noise amplifier (LNA), integrated filters, RSSI, AFC, and advanced power-saving modes, making it ideal for cost-sensitive, power-efficient designs.
MAXIM INTEGRATED / ANALOG DEVICES MAX41470GTC ASKFSK Receiver Specifications:
- Frequency Range: 287MHz to 960MHz in three bands (315MHz, 434MHz, 868/915MHz nominal)
- Voltage Range: 1.8V to 3.6V
- Operating Temperature: -40°C to +105°C
- Power Consumption: Sleep 10nA, Active 9-14mA, Standby 320A
- Data Rate: Up to 200kbps (NRZ), 100kbps (Manchester encoding)
- Intermediate Frequency: 200kHz or 400kHz selectable with IF_SEL
- Bandwidth: 350kHz (IF = 400kHz), 175kHz (IF = 200kHz)
- Output Power: Compatible with modulation depth >20dB, Max input level -20dBm
- Features: Integrated LNA, PLL, AFC, RSSI, digital demodulation, fast startup, self-polling low-power mode

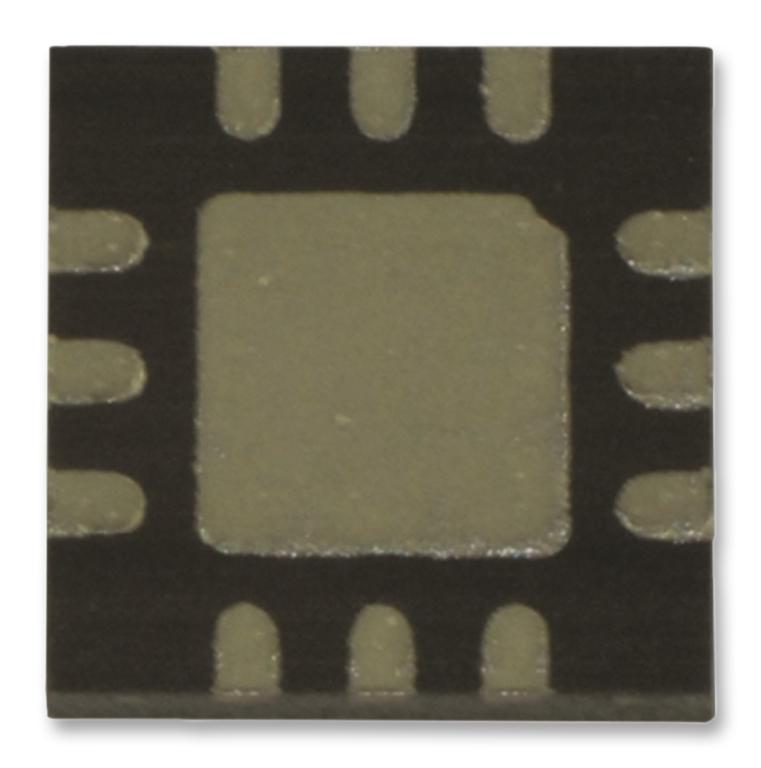

- Package: 12-pin TQFN, 4mm x 4mm footprint
- Image rejection: 33dB calibrated, 30dB uncalibrated
Buy the Maxim MAX41470 – Reliable ASK/FSK Receiver for Industrial Applications
Purchase the Maxim MAX41470 today—this versatile ASK and FSK receiver offers excellent sensitivity, low power consumption, and integrated RF front-end for industrial, automation, and security systems. Its configurable frequency bands, high data rate capability, and advanced features like AFC, RSSI, and digital demodulation make it ideal for cost-sensitive applications demanding reliable wireless communication. Available in compact package with easy SPI interface for seamless integration and rapid deployment in your industrial or IoT project.
Get Maxim MAX41470 today—designed for high sensitivity and low power in industrial communications and remote sensor networks.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX41470GTC?
You can click on the BUY or RFQ button to purchase MAX41470GTC from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX41470GTC?
You can download the MAX41470GTC datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX41470GTC?
MAXIM INTEGRATED / ANALOG DEVICES
