MAXIM INTEGRATED / ANALOG DEVICES MAX4210DEUA Power Monitor
The MAX4210DEUA+ is an affordable, low power high-side power and current monitor in an 8-pin µMAX package. This device provides an analog output voltage proportional to the power consumed by a load by multiplying the load current and source voltage. It measures load current using a high-side current sense amplifier, making it suitable for battery-powered systems without interfering with the load's ground path. Compact and simple, it features a 6-pin design with an external resistor divider for flexible applications. Typical uses include overpower circuit protection, smart battery packs and chargers, peripheral control, short circuit protection, power supply measurement, instrumentation, analog multipliers, VGA circuits, and power level detection.
MAXIM INTEGRATED / ANALOG DEVICES MAX4210DEUA Power Monitor Specifications:
- Supply voltage range: 2.7V to 5.5V
- Operating temperature: -40°C to 85°C
- Power sense amplifier gain: 16.67 V/V
- Gain accuracy: ±1.5% at 25°C, VSENSE = 10mV to 100mV, VIN = 1V
- Full-scale sense voltage: 150mV
- Input source voltage range: +4V to +28V
- Low supply current: 380µA at 5.5V, 25°C
- Bandwidth: IOUT -3dB at 220kHz; POUT -3dB at 500kHz
- Input bias current: 3µA at VSENSE = 0mV
- Common mode rejection: 80dB
- Maximum output voltage: 4V to 28V input range
- Package: 8-pin µMAX with external resistor divider
- Suitable for overcurrent, overvoltage protection, power measurement, instrumentation, analog multiplication

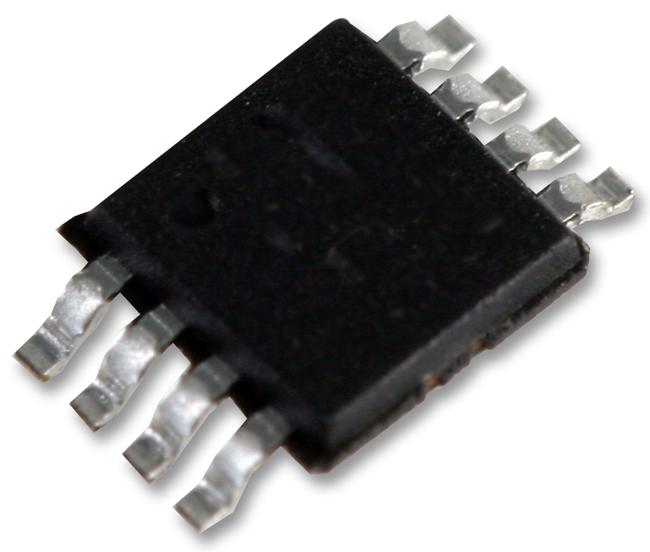

Buy the Maxim Integrated MAX4210DEUA Reliable Power Monitoring for Industrial Applications
Experience reliable power and current monitoring with the Maxim MAX4210DEUA+ in an 8-pin µMAX package. Perfect for battery protection, power supply measurement, and circuit safety, this low-power device offers high accuracy and a broad voltage range. Its high-side current sense amplifier ensures precise readings without disturbing the load ground, making it ideal for smart battery chargers, overload protection, and instrumentation. Easy to integrate with external resistor dividers, this compact monitor provides essential data for enhancing system safety and efficiency. Purchase online today to benefit from dependable performance and seamless integration.
Get Maxim MAX4210DEUA today—built for precision and long-lasting durability in high-side power and current measurement applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4210DEUA?
You can click on the BUY or RFQ button to purchase MAX4210DEUA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4210DEUA?
You can download the MAX4210DEUA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4210DEUA?
MAXIM INTEGRATED / ANALOG DEVICES
