MAXIM INTEGRATED / ANALOG DEVICES MAX5136AGTG High-Resolution DAC
The MAX5136AGTG+ is a 16-bit, voltage-output DAC in a compact 24-pin TQFN package, designed for low power consumption and high linearity. It features dual buffered outputs, internal or external 2.44V reference, and supports 3-wire serial interfaces like SPI/QSPI/MICROWIRE for simplified design. The device includes double-buffered input registers, hardware/software LDAC for synchronized updates, and a READY pin for daisy chaining. It resets outputs to zero/midscale on power-up, operates between -40°C to 105°C, and is suitable for precision control, instrumentation, and signal processing applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX5136AGTG High-Resolution DAC Specifications:
- Resolution: 16 bits
- Package: 24-pin TQFN (4mm x 4mm)
- Operating Temperature Range: -40°C to 105°C
- Reference Voltage: Internal 2.44V, external compatible
- Power Consumption: Max 2μA
- Output Type: Buffered voltage output, dual channels
- Resolution: 65,536 codes for voltage output
- Interface: 3-wire SPI/QSPI/MICROWIRE compatibility
- Output Impedance: 0.4Ω
- Settling Time: 5μs to within 2 LSB
- Glitch Impulse: 120 nV/Hz at 410kHz
- Low gain error: Less than ±0.5% FS
- Offset voltage error: Less than ±10 mV
- Reference: High stability internal reference, 10ppm/°C
- Supply Voltage Range: +2.7V to +5.25V
- Output Load Drive: Up to 2kΩ with 200pF load
- Input Compatibility: CMOS logic inputs with hysteresis
- Features: Double-buffered input registers, hardware/software LDAC
- Daisy chaining support via READY pin
- Power-up reset to zero or midscale controlled via M/Z pin

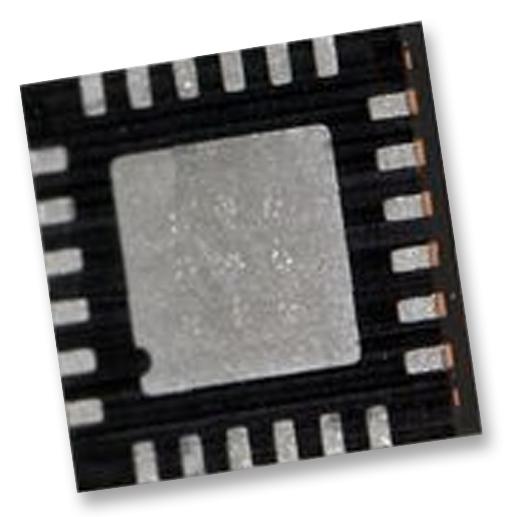

Buy the Buy Maxim Integrated MAX5136AGTG+ 16-Bit Volatile DAC Part Number MAX5136AGTG+ Online
Purchase the Maxim Integrated MAX5136AGTG+ online today and benefit from its high linearity and low power design. Ideal for industrial automation, instrumentation, and communication systems requiring precise voltage output. Its dual buffered channels, support for multiple serial interfaces like SPI and QSPI, and daisy-chaining capability make integration simple. The device features a power-up reset to safe states, internal or external 2.44V reference, and operates efficiently across -40°C to 105°C. Secure your critical applications with a reliable solution designed for demanding environments.
Order your Maxim Integrated MAX5136AGTG+ 16-bit voltage-output DAC today and enhance your precision control projects with reliable, high-linearity performance.
