MAXIM INTEGRATED / ANALOG DEVICES MAX699CPA Power Controller Module
The MAX699 is a low-cost power-on reset and watchdog controller designed for monitoring +5V power supplies in digital systems and microprocessors. It provides a reliable reset pulse of at least 140ms during power-up, power-down, and brownout conditions, with a built-in watchdog timer that watches microprocessor activity and asserts a reset if WDI not toggled within 1 second. The device minimizes external component count, offers both DIP and SO packages, and supports temperatures from 0°C to +70°C or -40°C to +85°C, ensuring robust, cost-effective system monitoring.
MAXIM INTEGRATED / ANALOG DEVICES MAX699CPA Power Controller Module Specifications:
- Supply Voltage Range: 3.0V to 5.5V
- Reset Pulse Width: 140 to 500 ms
- Operating Temperature: 0°C to +70°C or -40°C to +85°C
- Reset Output: Open-drain, Low 0.4V at 1.6mA sink
- Watchdog Timeout Period: 0.8 seconds minimum
- WDI Input Threshold: 3.8V high, 20 to 50pA input current
- WDO Output: High when WDI is stable or unconnected
- Pin Configuration: 8-Pin PDIP or 16-Pin Wide SO packages
- Power Dissipation (T=+70°C): 8-Pin PDIP derated 7mW/°C, 16-Pin SO derated similarly
- Device Certifications: RoHS compliant, UL listed
- Power Dissipation (T=+70°C): 8-Pin PDIP and 16-Pin SO packages
- Max Operating Temperature: -40°C to +85°C or 0°C to +70°C depending on model

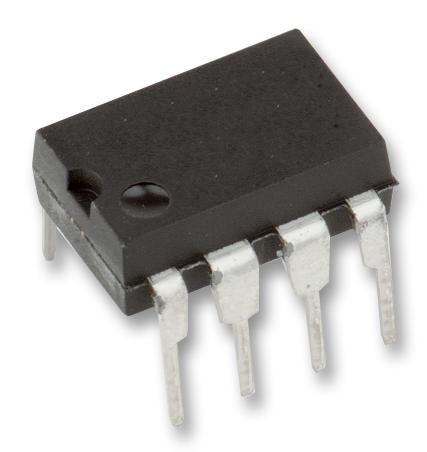

Buy the Maxim Series MAX699 Power-On Reset: MAX699CPA
Ensure your digital system's stability with the Maxim MAX699CPA power-on reset and watchdog controller. It offers dependable reset pulses, a built-in watchdog timer, and minimal external components, making it perfect for microprocessor-based applications. Available in compact DIP and SO packages, it supports wide temperature ranges for varied environments. Guarantee your device's reliability by purchasing the MAX699CPA online today—engineered for accuracy, durability, and efficient system monitoring.
Get Maxim MAX699CPA today—designed for precise power-up reset and reliable watchdog functions in your digital systems.
