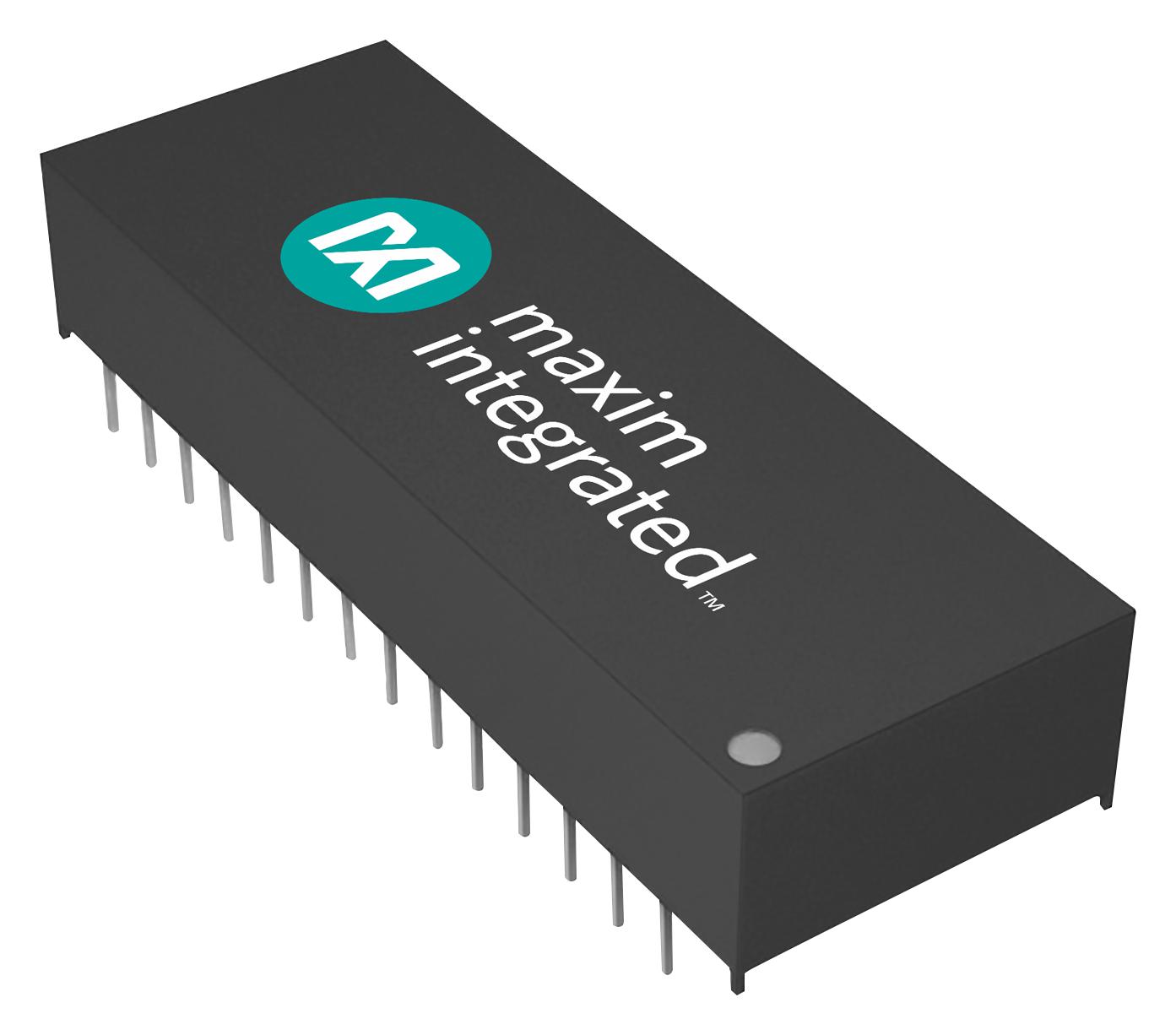

MAXIM INTEGRATED / ANALOG DEVICES DS1230Y150 Nonvolatile SRAM
The DS1230Y-150+ is a 256KB non-volatile static RAM in a 28-pin EDIP package. It features 262,144 bits organized as 32,768 words by 8 bits, with a built-in lithium energy source and control circuitry that monitor the supply voltage. In case of an out-of-tolerance condition, the device automatically switches on the lithium source and disables write protection to prevent data loss. This SRAM is compatible as a direct replacement for standard 32K x 8 static RAMs and EEPROMs, fitting into the same pin configuration for easy migration, while offering enhanced performance. Designed for surface mount applications with a low profile, it supports unlimited write cycles without additional support circuitry. The device operates within a voltage range of 4.5V to 5.5V, has an operating temperature range of 0°C to 70°C, and features a read/write access time of 150ns. The lithium energy source remains disconnected until first power-up, ensuring data freshness. It is suitable for embedded design and development projects. Market demand has extended lead times, affecting delivery dates. The product is not eligible for discounts.
MAXIM INTEGRATED / ANALOG DEVICES DS1230Y150 Nonvolatile SRAM Specifications:
- Memory Capacity: 262,144 bits (32,768 words by 8 bits)
- Package: 28-pin EDIP
- Organization: 32,768 words x 8 bits
- Voltage Range: 4.5V to 5.5V (Vcc)
- Data Retention: 10 years minimum with lithium backup
- Operating Temperature: 0°C to 70°C
- Access Time: 150 ns
- Built-In Lithium Energy Source: Disconnected at shipping, enabled on first power-up
- Functionality: Fully static, unlimited write cycles
- Compatibility: Replaces 32K x 8 static RAMs and EEPROMs
- Application: Embedded design, industrial, reliable data retention
- Package Type: Surface-mount low-profile module with replaceable PowerCap
- Mechanical: 28-pin JEDEC standard DIP (EDIP) package for reliable mounting
- Control Circuitry: Monitors supply voltage for out-of-tolerance conditions
Buy the Maxim DS1230Y-150+ – Reliable Nonvolatile SRAM for Industrial Applications
Enhance your embedded systems with the Maxim DS1230Y-150+ nonvolatile SRAM, offering 256KB of reliable memory with lithium backup. Its fast 150ns access time, surface-mount design, and wide voltage range ensure superior performance in industrial and embedded applications. With automatic data protection during power loss and unlimited write cycles, it guarantees data integrity and long-term operation without external support circuitry. Buy online now to deliver robust, dependable memory solutions that meet your project requirements and ensure seamless system performance.
Get Maxim DS1230Y-150+ today—built for precision, long-lasting durability, and easy integration into your industrial and embedded systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DS1230Y150?
You can click on the BUY or RFQ button to purchase DS1230Y150 from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DS1230Y150?
You can download the DS1230Y150 datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DS1230Y150?
MAXIM INTEGRATED / ANALOG DEVICES
